SKU: ATEATPK-414

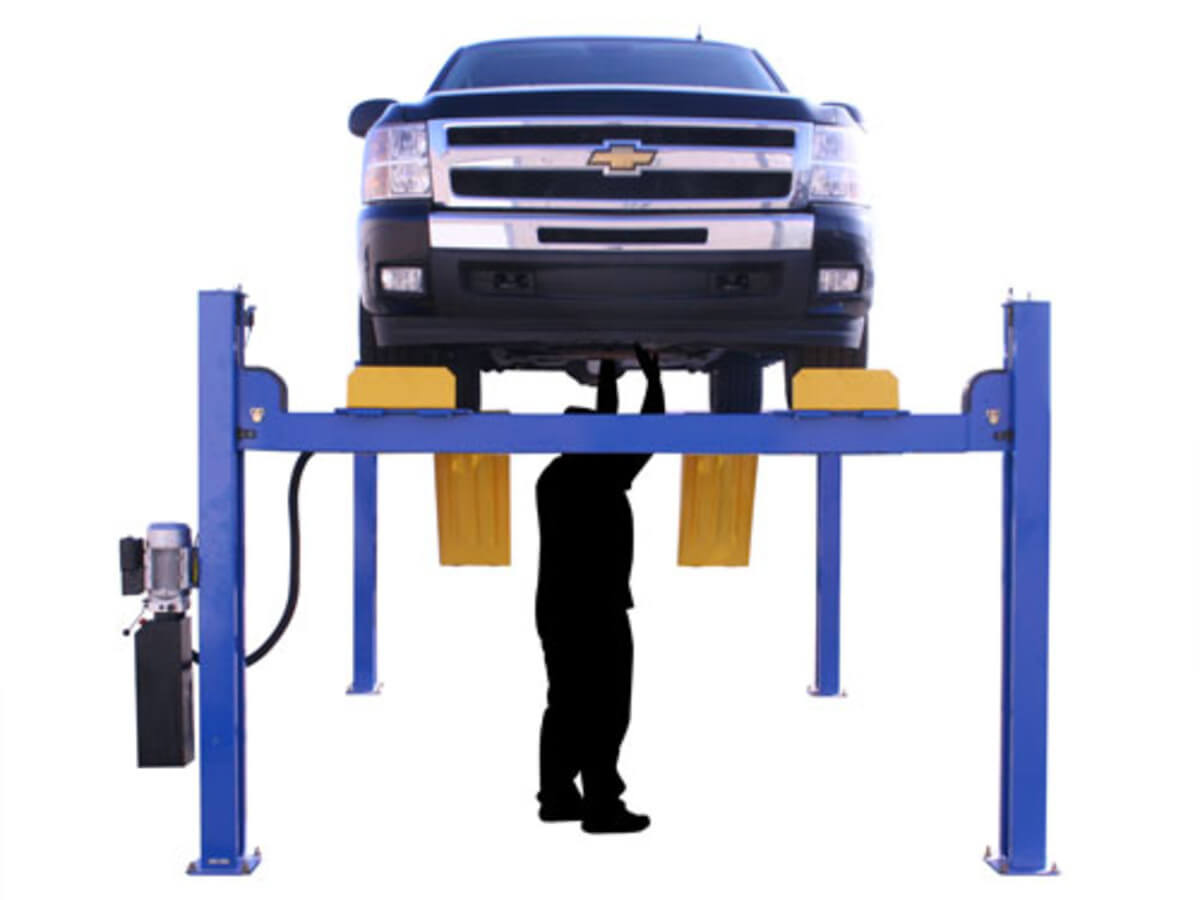

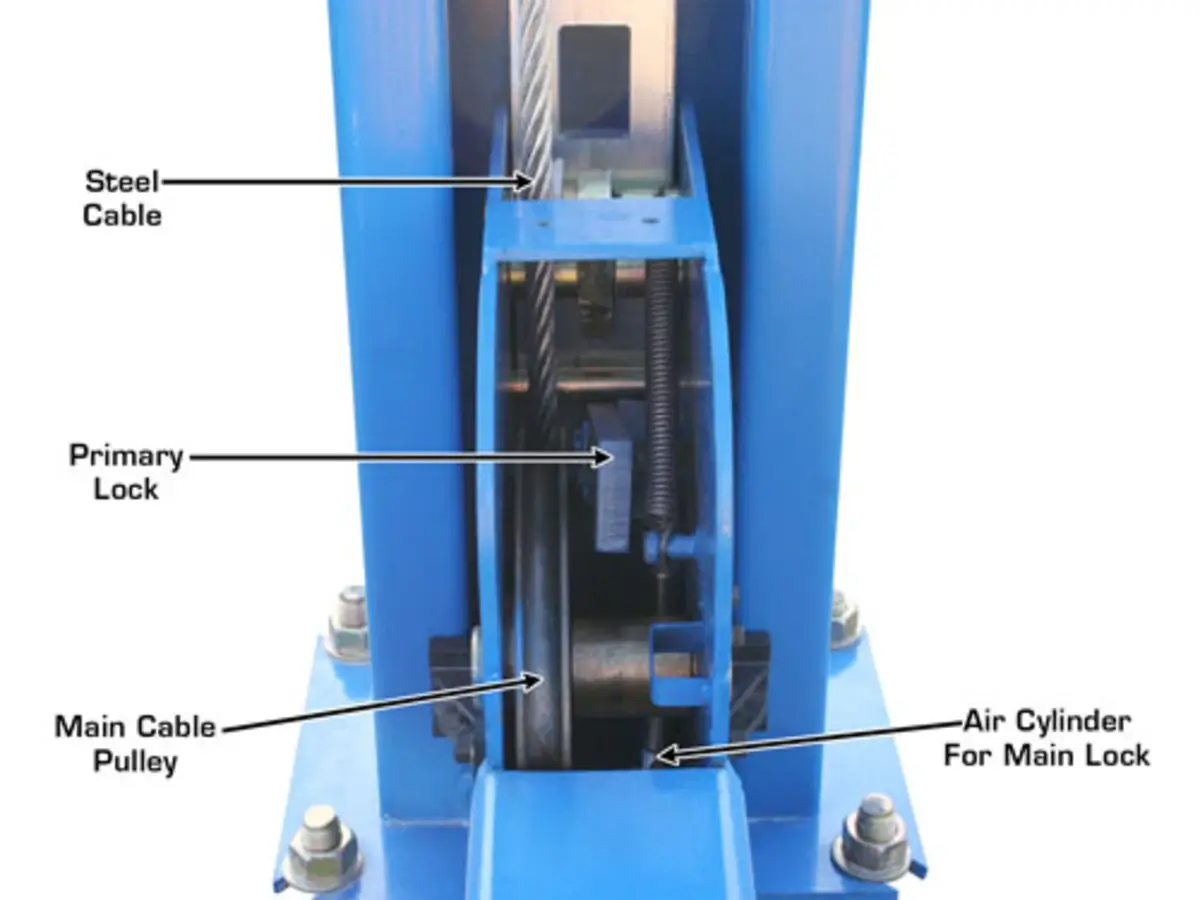

Built to commercial-grade standards, the Atlas 414 14,000-lb. capacity four-post lift delivers years of reliable service with exclusive features competitors can’t match. It offers premium structural and cosmetic details plus optional drive-through off-ramps at a fraction of the cost of high-end lifts.

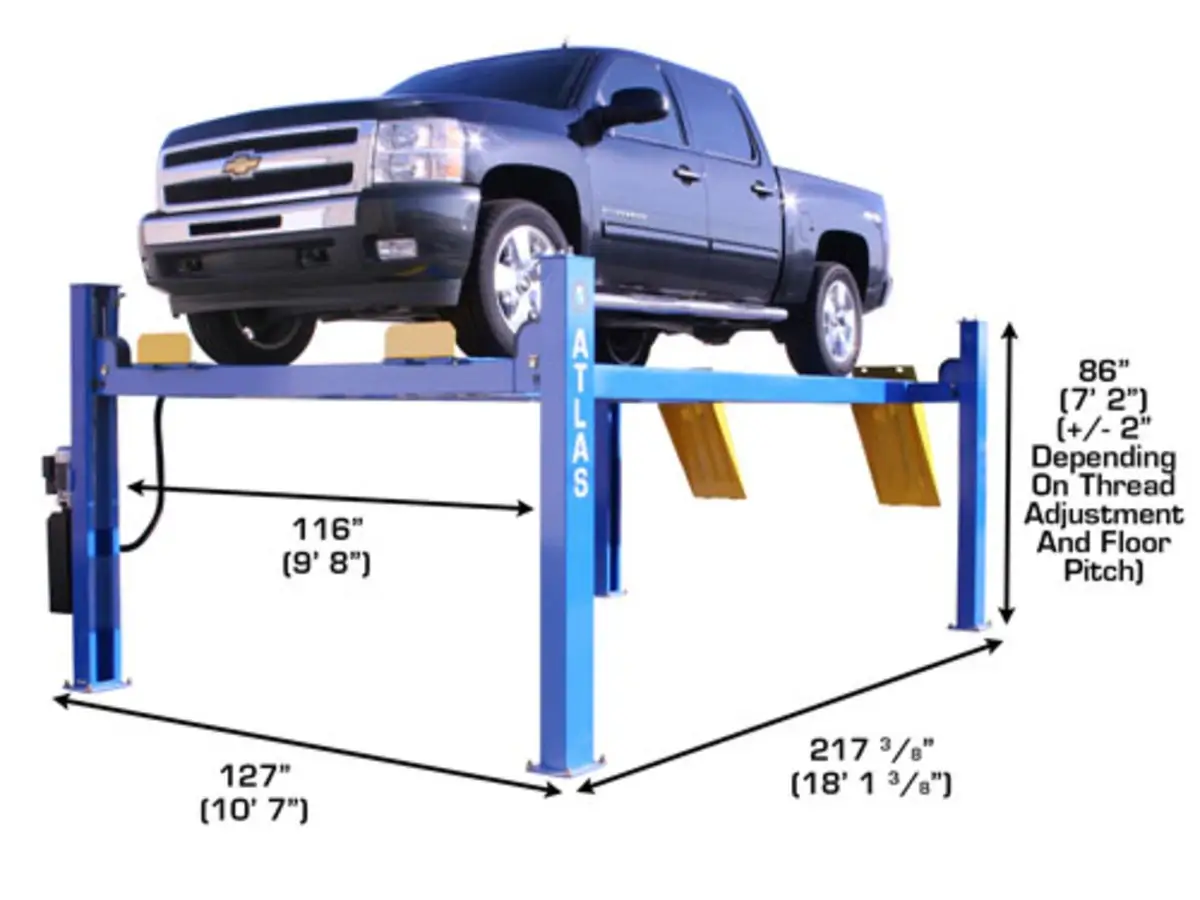

| Capacity | 14,000 lb. |
| Lifting Height | 80″ (6′ 8″) |

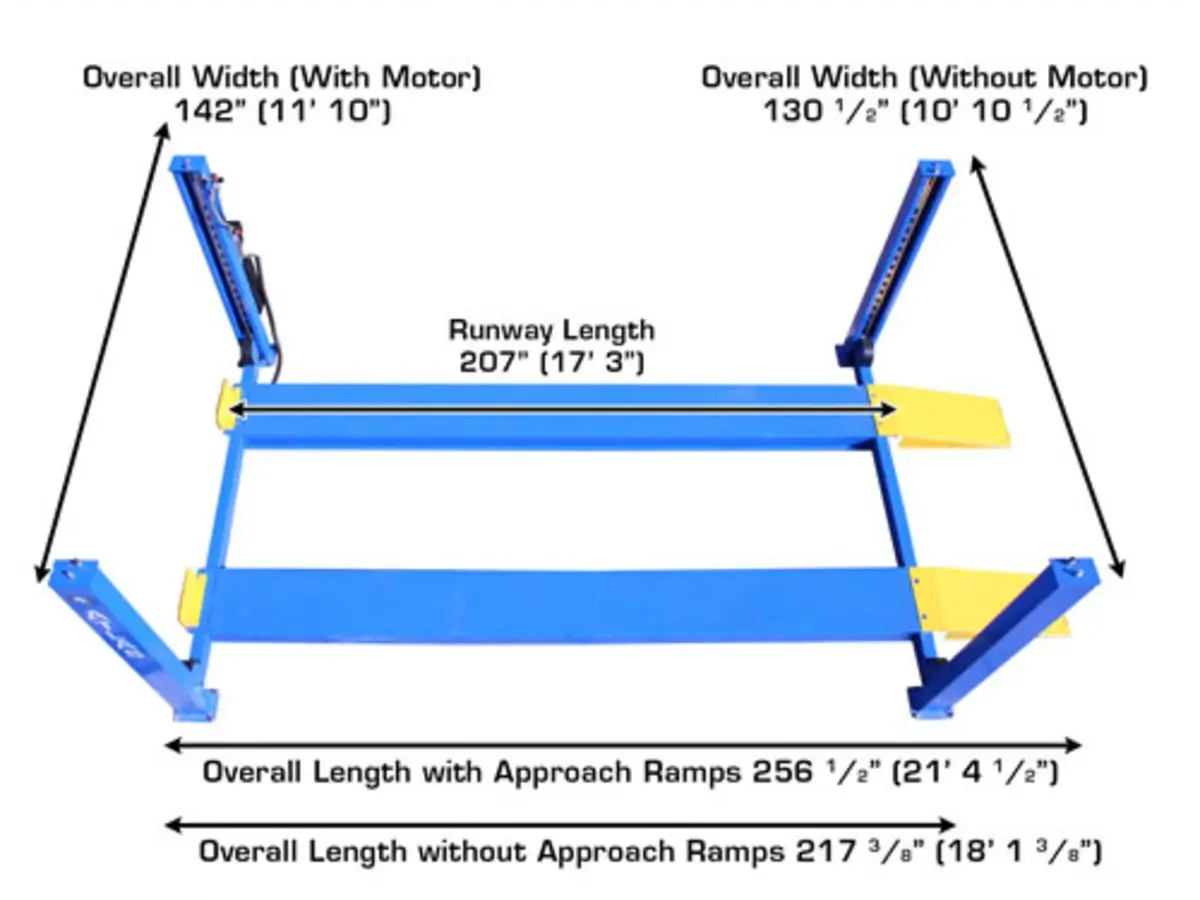

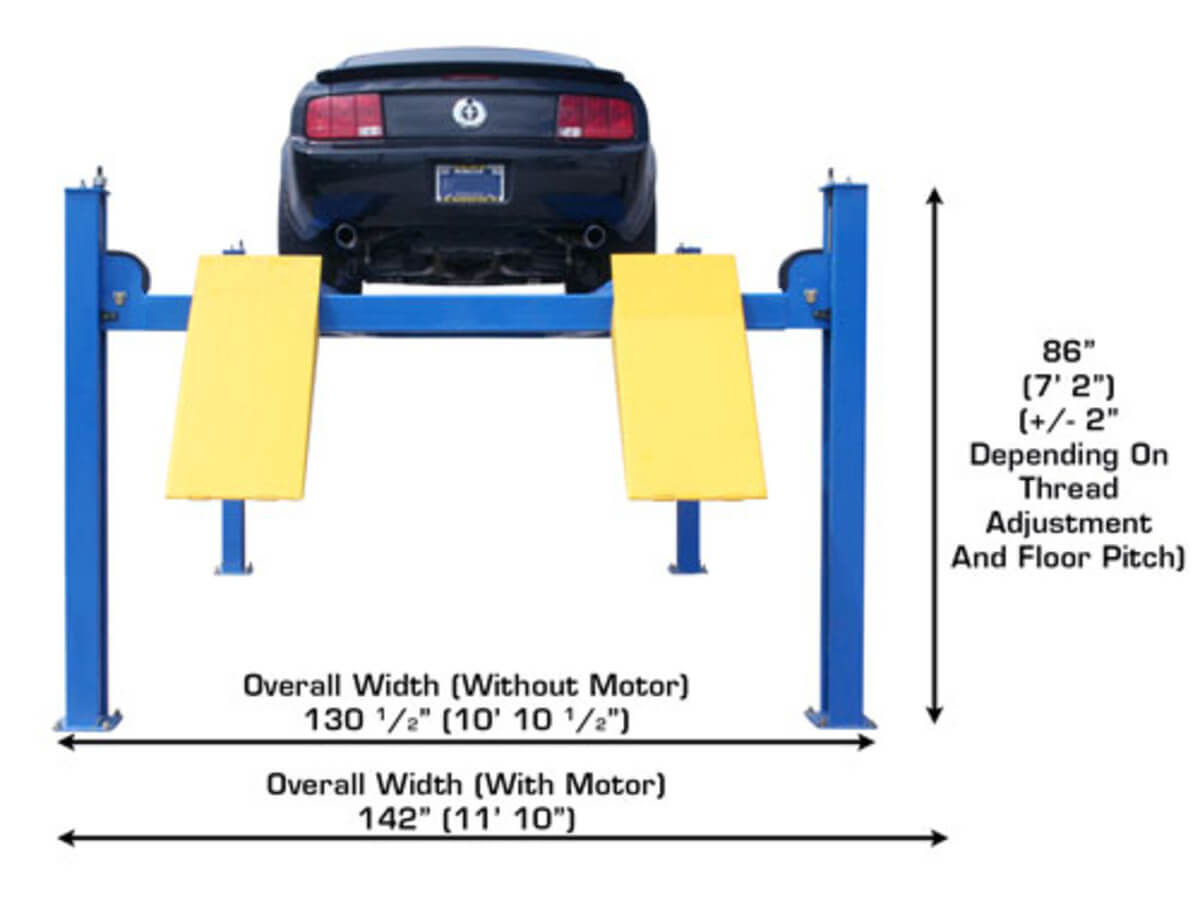

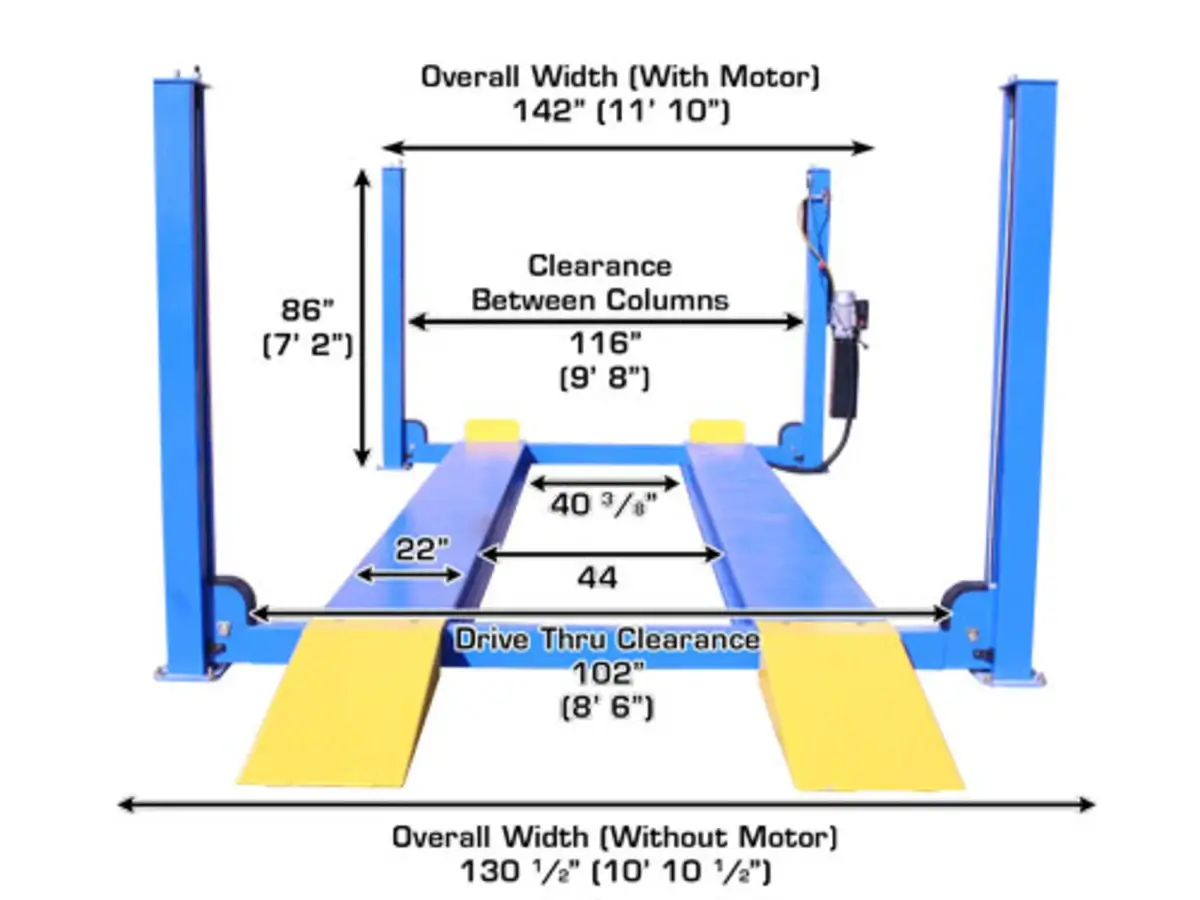

| Overall Width Of Columns (Without Motor) | 130 7/8″ (10′ 10 7/8″) |
| Overall Width Of Columns (With Motor) | 138 7/8″ (11′ 6 7/8″) |

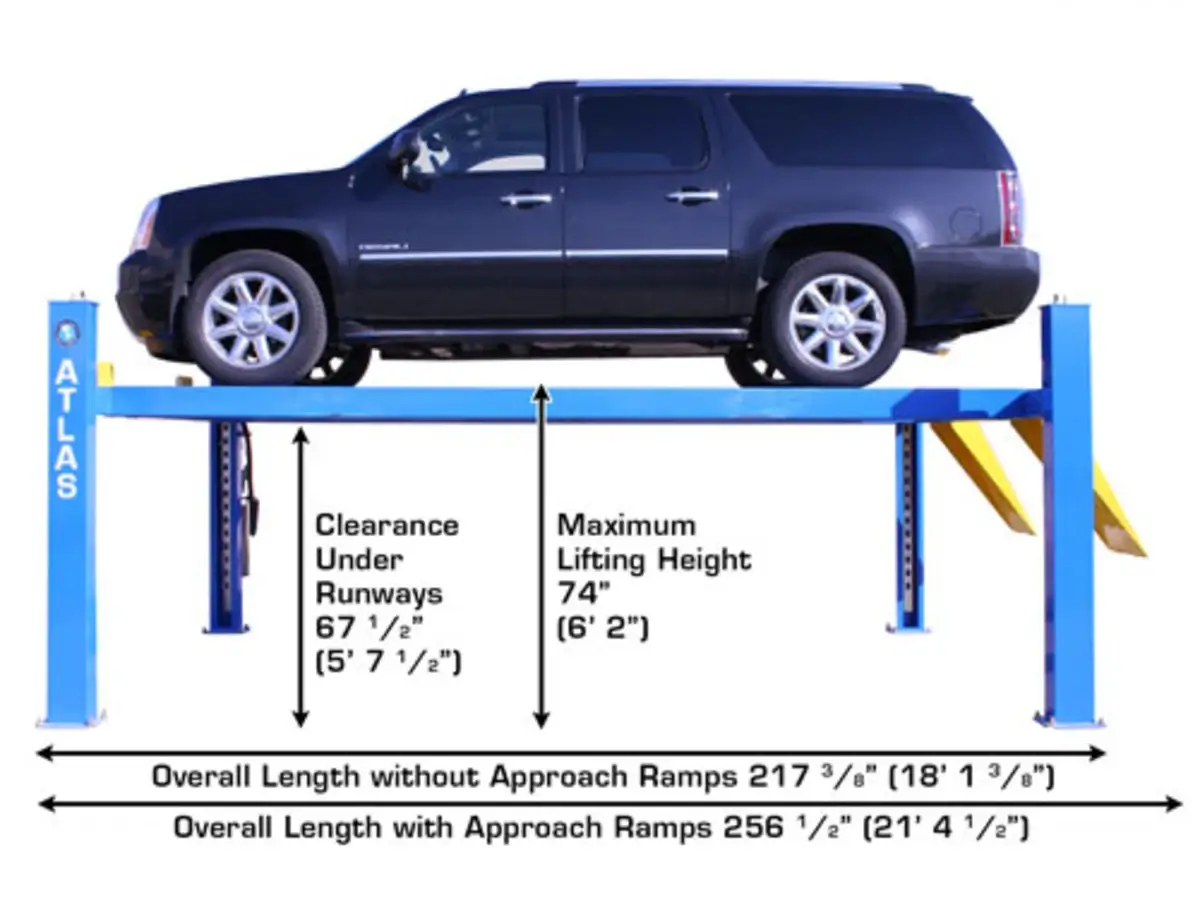

| Overall Length With Approach Ramp | 255″ (21′ 3″) |
| Length Between Columns | 197 1/4″ (16′ 5 1/4″) |
| Runway Length | 208 5/8″ (17′ 4 5/8″) |
| Runway Width | 20″ |
| Thickness Of Runway | 8 3/4″ |

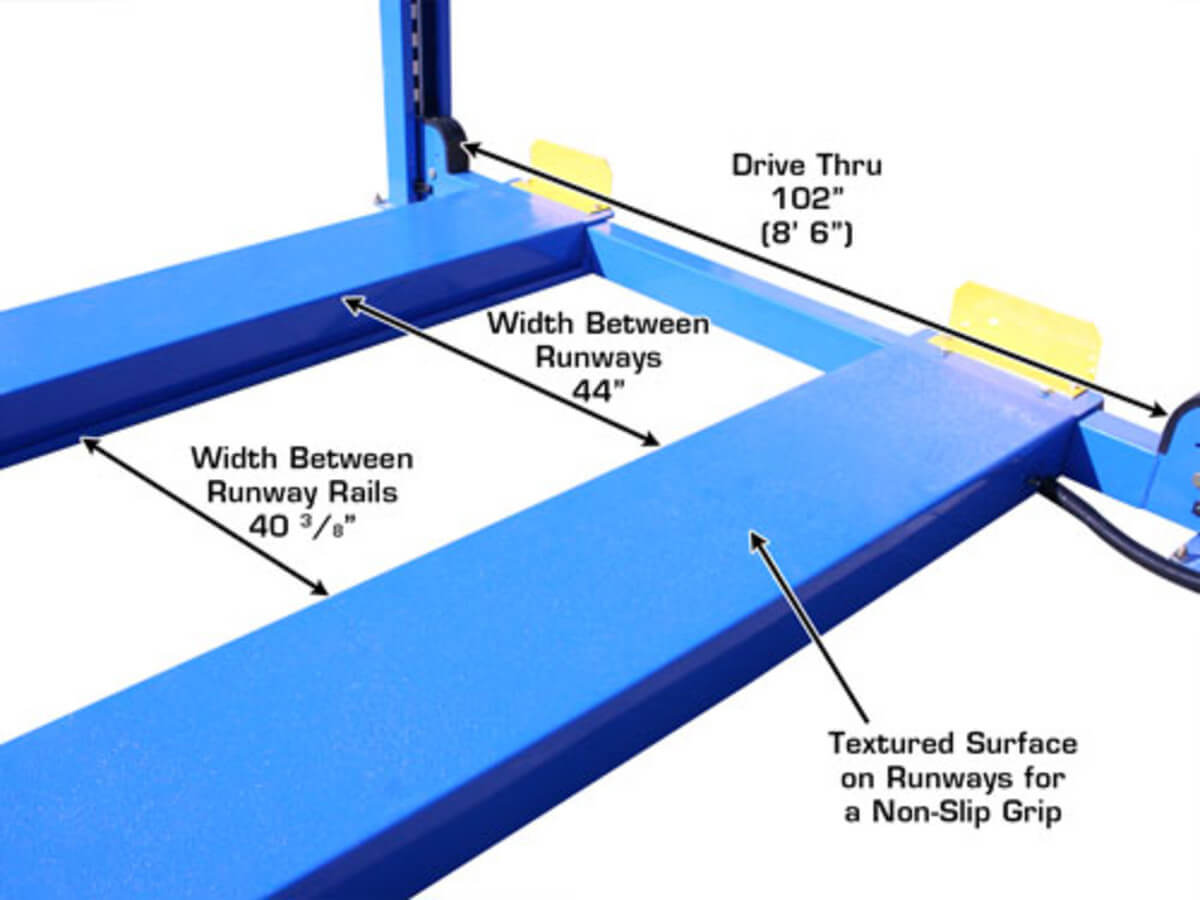

| Width Between Runways | 46 7/8″ (w/ Rail 44 3/8″) |
| Outside Runway To Outside Runway | 86 7/8″ (7′ 2 7/8″) |
| Clearance Under Runways | 71 1/4″ (5′ 11 1/4″) |
| Clearance Between Columns | 116″ (9′ 8″) |
| Height Of Columns | 91 1/8″ (7′ 7 1/8″) |
| Maximum Wheel Base | 197″ (16′ 5″) |
| Drive Thru | 102 1/8″ (8′ 6 1/8″) |
| Air Requirement | 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) |

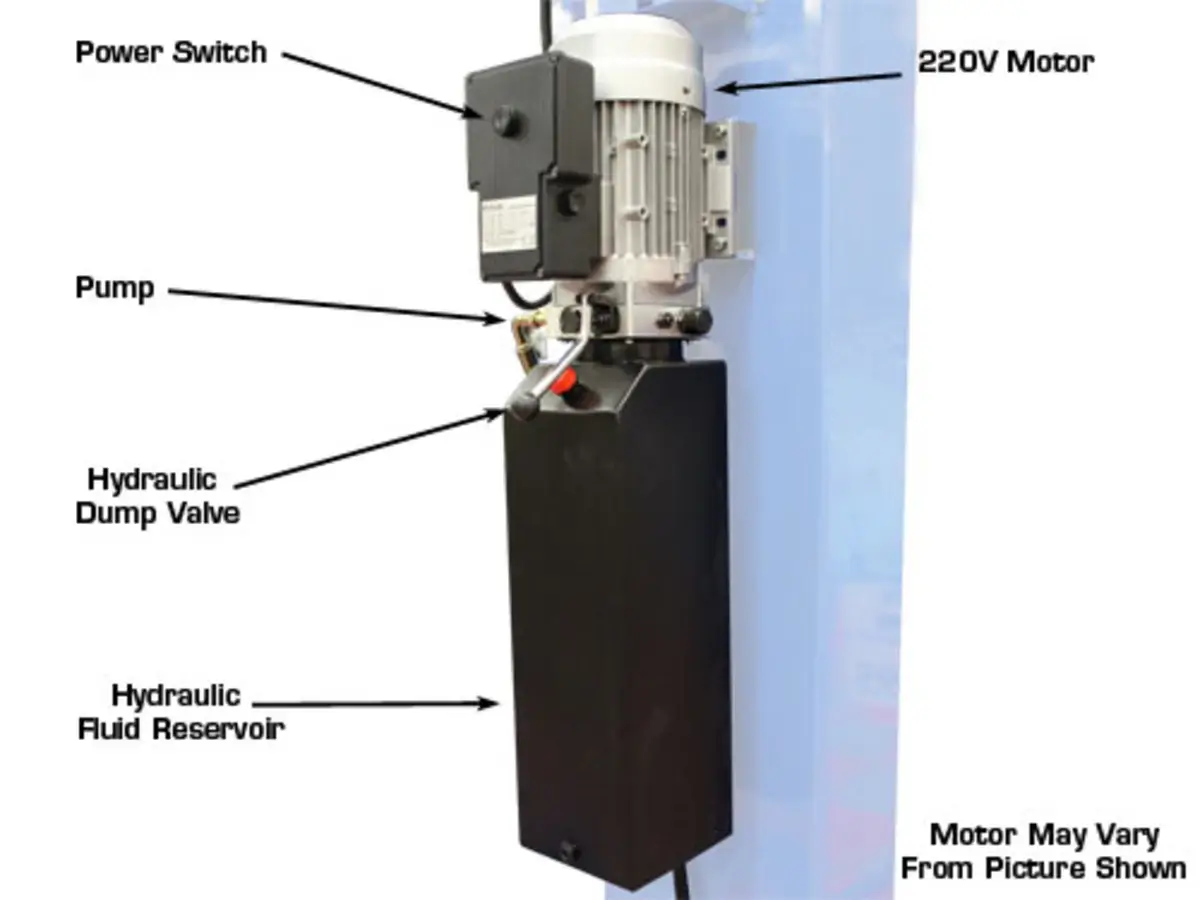

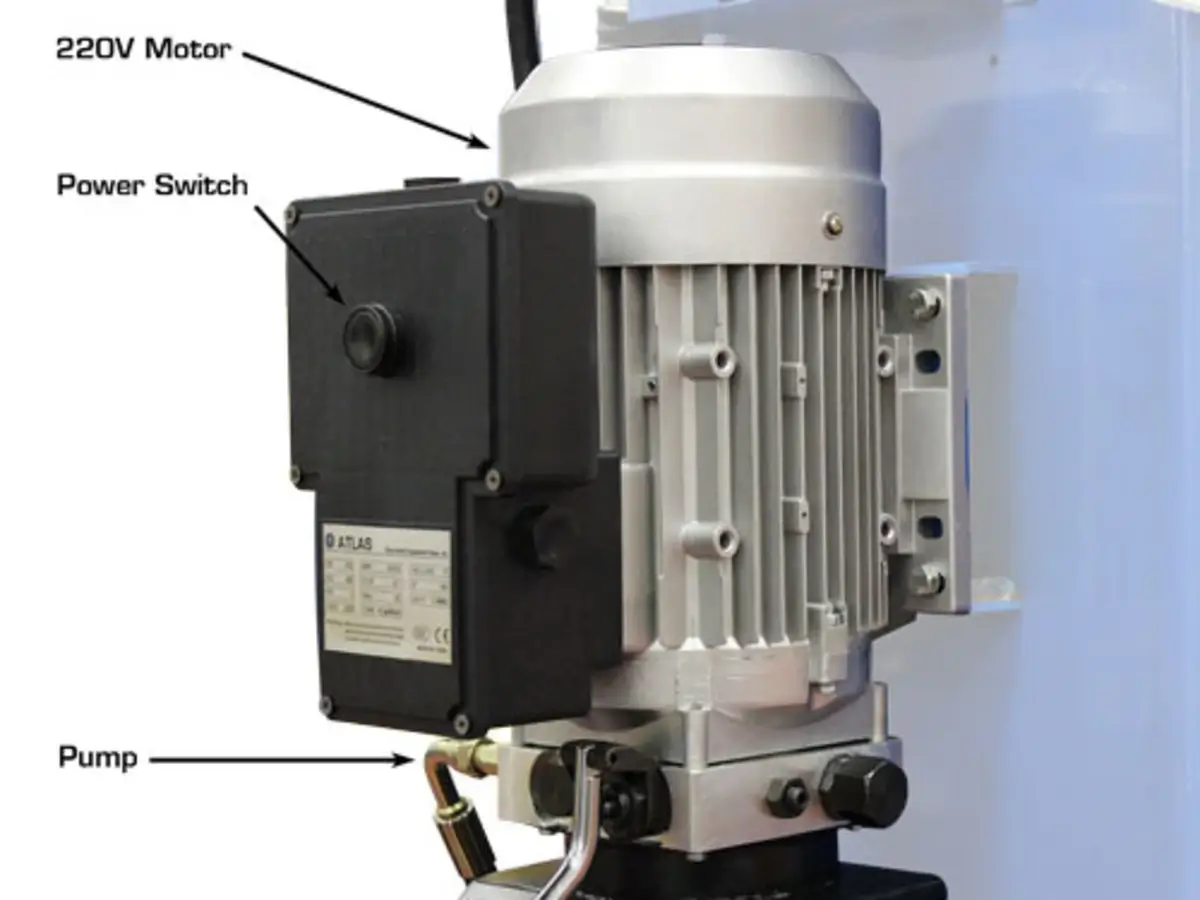

| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) |

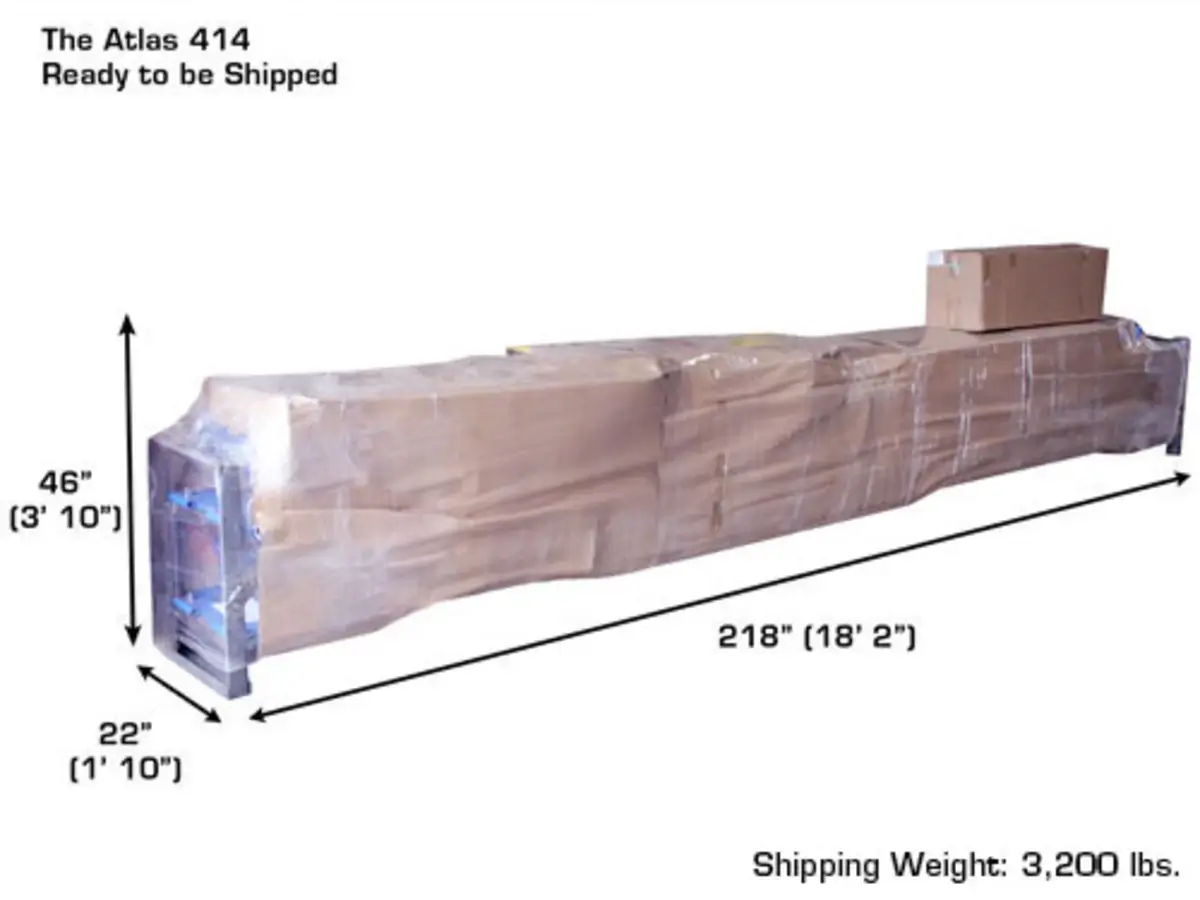

| Shipping Weight | 3,100 LBS. |
*Requires a minimum of 6″ of concrete with a 3000 psi. rating
*Measurement may vary due to adjustable runway.
