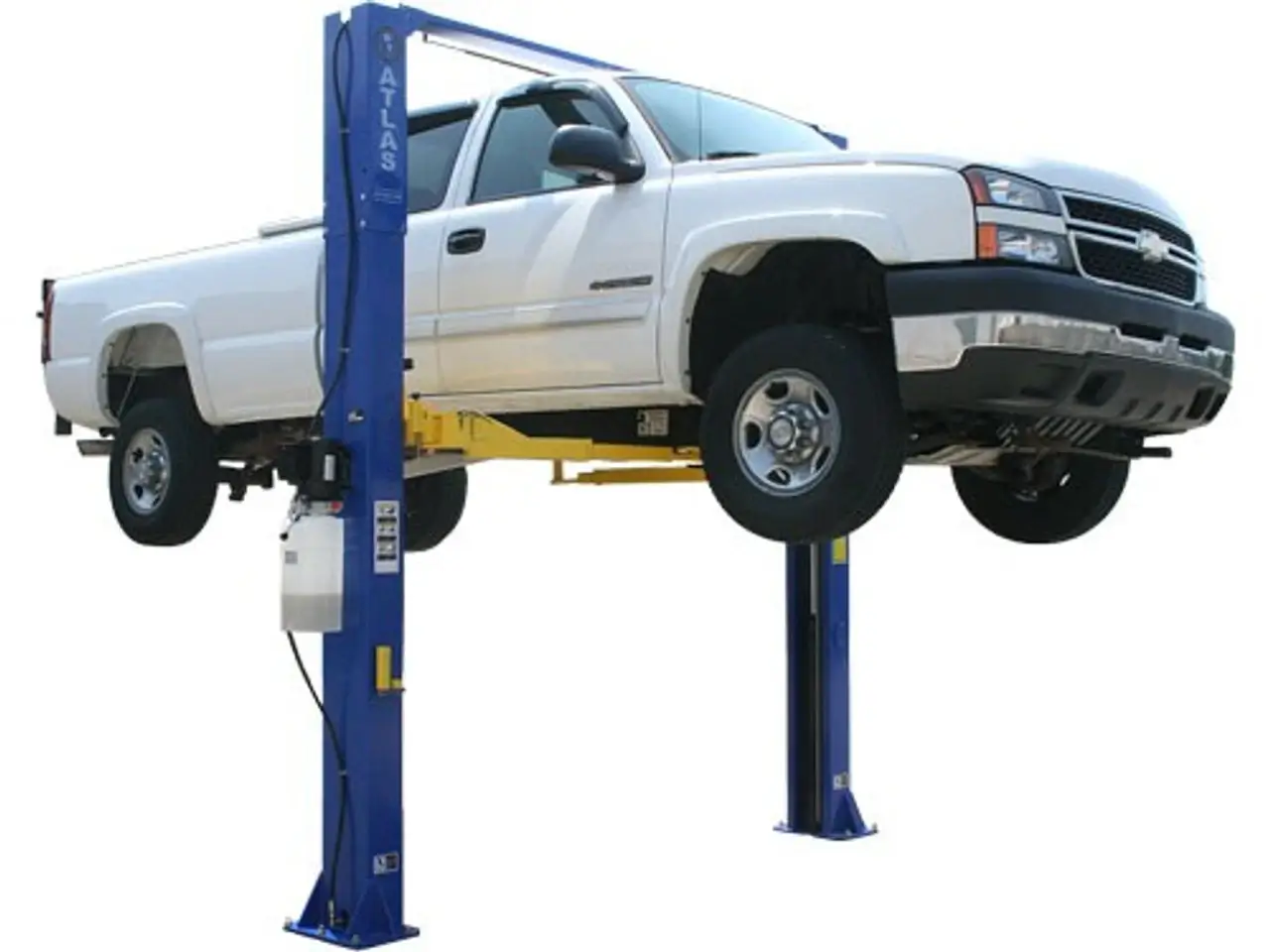

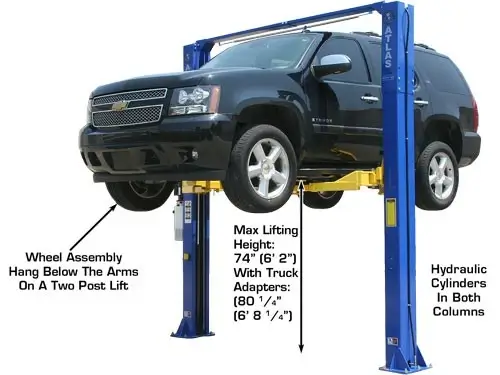

ATLAS 9KOH Overhead 9,000 lbs. Capacity 2 Post Lift

SKU: ATEXH-9KOHX

ATLAS 9KOH Overhead 9,000 lbs. Capacity 2 Post Lift

Save $458.00

$3,355.00 ~~$3,813.00~~

The Atlas 9KOHX is an economy-designed, overhead clear-floor lift? Perfect for home garages or small commercial shops servicing cars, SUVs, and light-duty trucks. With an adjustable height setting ($11′ 6″ or $11′ 10″), it easily fits into most standard service bays. The Atlas 9KOHX is the ultimate choice for those demanding maximum lifting capacity at the lowest possible price.

Please Note: This item is currently out of stock in Ontario.

Request a quote

FEATURES

9,000 LB. Capacity
“Padded” Shut-Off Bar
Light Commercial Grade
Clear Floor Design
Asymmetric Arm Design

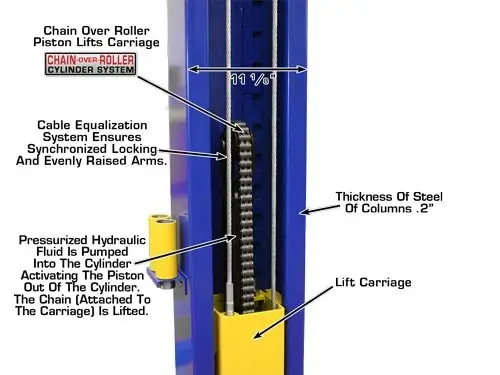

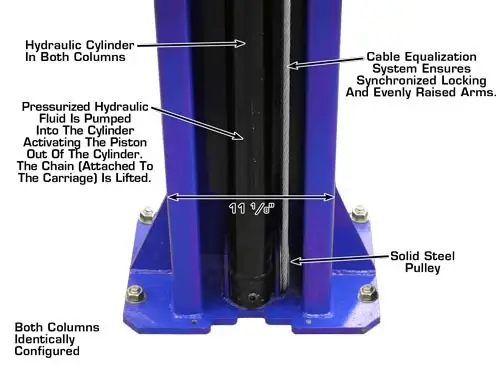

Dual Hydraulic Chain-Drive Cylinders
Powder Coat Finish
Secondary Lock System (SLS)
Dual Point Lock Release

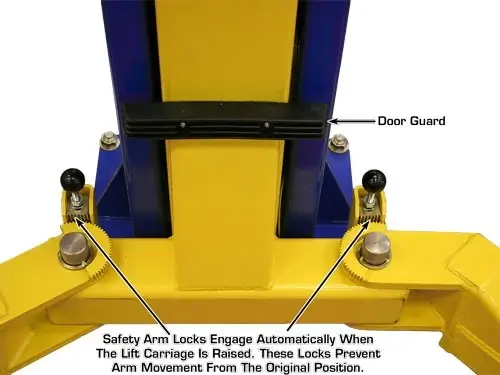

Automatic Arm Restraints

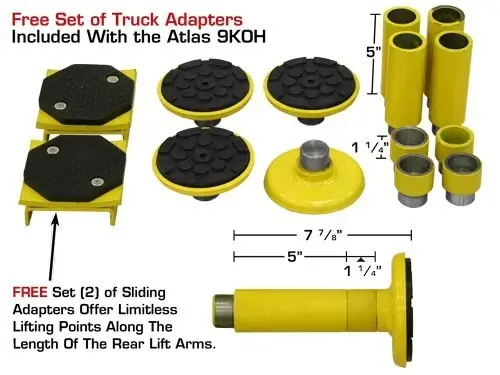

Free 8 Piece Truck Adapter Set
Mounting Hardware Included

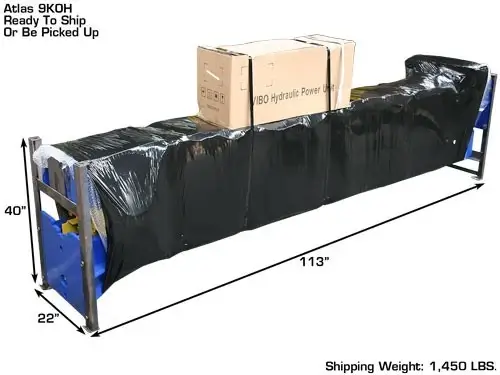

Shipping Weight: 1,450 lbs.

SPECIFICATIONS

DOCUMENTS

VIDEOS

Difference Between Symmetric Arms and Asymmetric Arms On a Two Post Lift

What is the difference between symmetric and asymmetric? Most of our customers ask that question. This video explains the difference between asymmetric arms and symmetric arms on an above ground lift.

Atlas 9KOHX Overhead Adjustable Height Two Post Lift

The ATLAS 9KOHX two post lift has been one of our most popular lifts for years now. And why not? It has so many great features packed into an affordable price. You would be hard pressed to find another lift out there at this price that offers so much. Dual height settings Clear floor design Reliable arm restraints Dual vehicle positioning ability - symmetric or asymmetric Includes two different height truck adapters. Secondary locking system Padded overhead shut off bar Robust 9,000 lb lifting capacity. Extra pad on the inside section of the front telescoping arms for wide vehicles. Perfect for light to moderate commercial use, as well as home hobby use. Get one for your garage today.

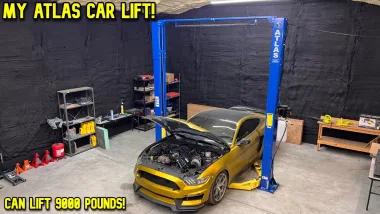

My Atlas Car Lift

My ATLAS Two Post Car Lift - Cameron Alvarado

Need help choosing the right Lifts?

Our team is here to help you find the perfect solution for your needs.

Capacity	9,000 LB.

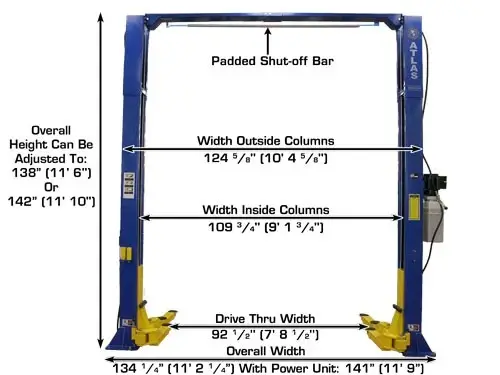

Overall Height	138″ (11’ 6″) or 142” (11’ 10”)
Overall Floor Width	134 1/2″ (11’ 2 1/2″)
Outside Column to Outside Column	124 7/8″ (10’ 4 7/8″)

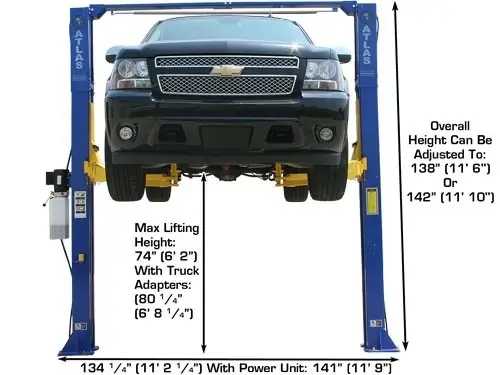

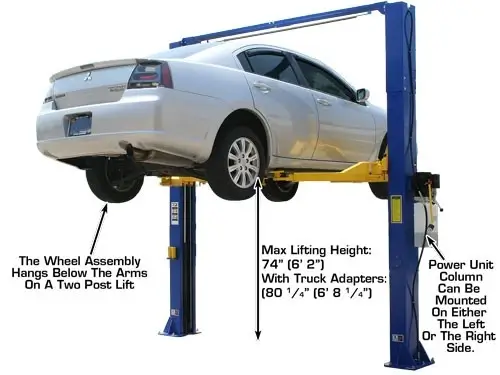

Maximum Lift Height (Without Adapters)	74 1/2″
Maximum Lift Height (With Adapters)	81″
Minimum Arm Height	4″
Inside Column	110” (9’ 2”)
Drive Thru	100” (8’ 4”) Symmetric/ 90 1/2″ (7’ 6 1/2”) Asymmetric
Column Size	7 1/4″ x 11″
Column Thickness of Steel	5mm
Base Of Lift	14 1/4″ x 18″
Motor/Electrical Requirement	220 volt single (1) phase. A 30 amp breaker is recommended
Oil Requirement	3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight	1,450 LBS.
Adapter Heights	4 Each 1.5”, 5”
Arm Hole/Adapter Peg Size	1.5”

Requires a minimum of 4″ of concrete with a 3000 psi. rating
