SKU: ATEATTD-BP10000X

ATLAS BP10000 Baseplate 2 Post Lift

Save $684.00

$5,015.00 ~~$5,699.00~~

Need to lift heavy vehicles in a low-ceiling garage? The Atlas BP10000 Baseplate 2-Post Lift is your solution. Built for tight spaces, it features extra-strong, middle-welded columns and a unique single-point lock release for maximum safety and efficiency.

Please note: This item is currently out of stock in Ontario.

Request a quote

FEATURES

10,000 lb. Capacity

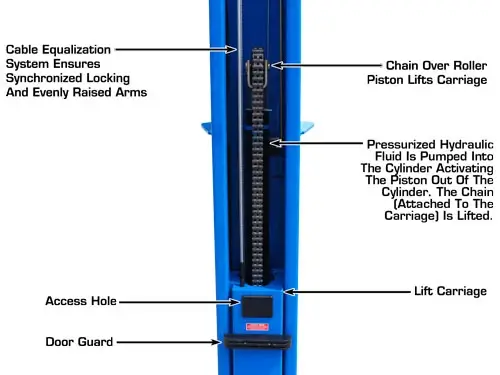

Dual Hydraulic Chain-Drive Cylinders Made On ANSI Standard

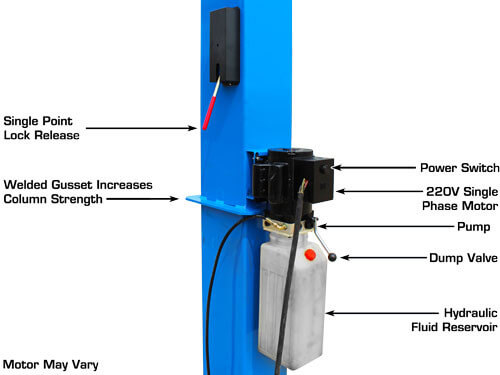

Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously
Double Lock System

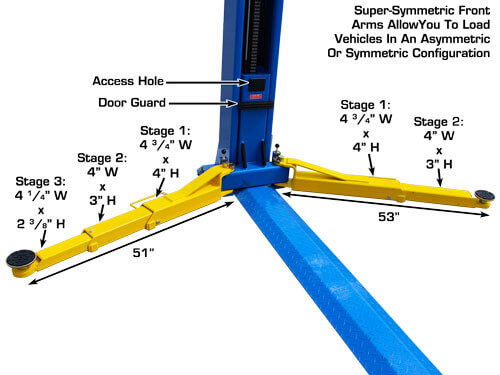

Super-Symmetric Arms
Base Plate Design
2 and 3 Stage Arms
Welded Support Gussets Increase Column Strength.

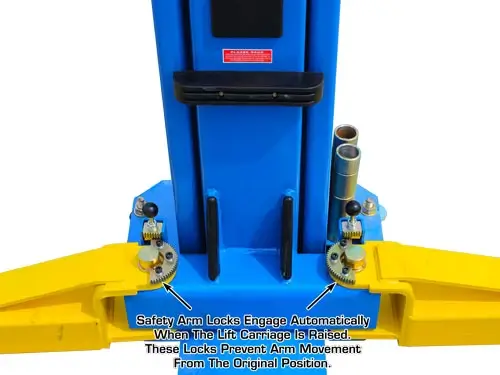

Automatic Arm Restraints
Powder Coat Finish

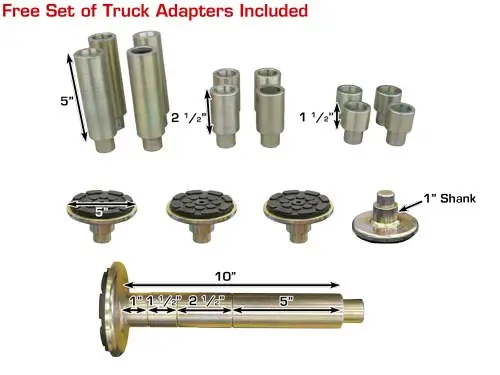

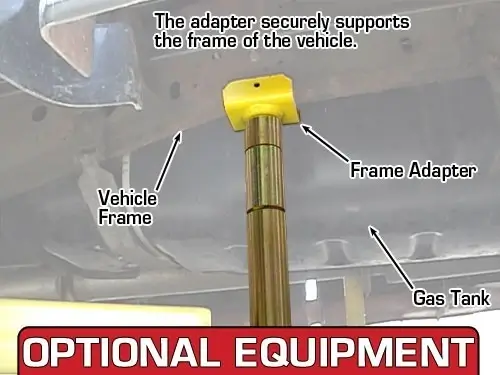

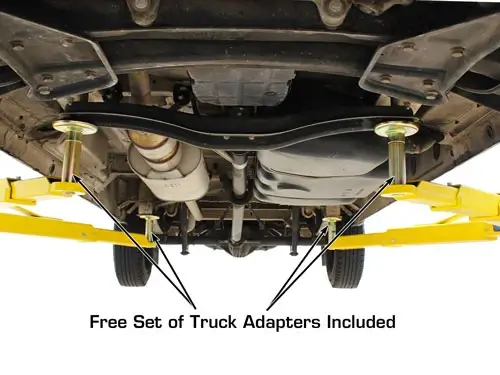

Free 12 Piece Truck Adapter Set

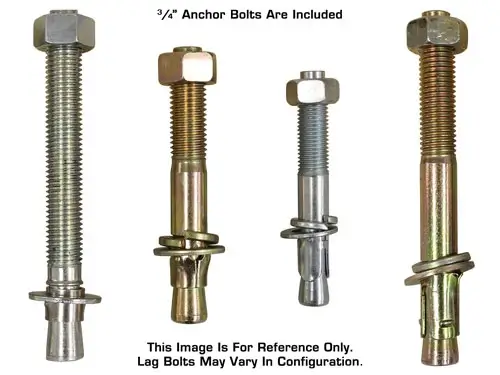

Mounting Hardware Included
5 Year Structural Warranty, 2 Year Hydraulic Cylinder Warranty, and 1 Year Power Unit Warranty

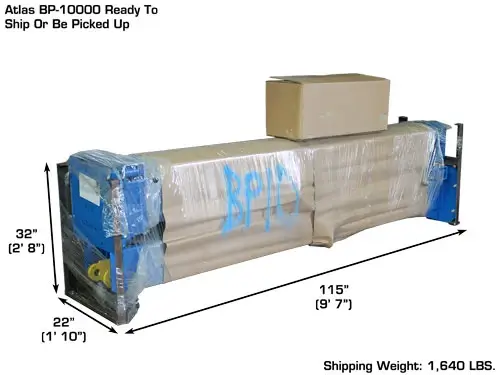

Shipping Weight: 1,640 LBS.

SPECIFICATIONS

DOCUMENTS

VIDEOS

Difference Between Symmetric Arms and Asymmetric Arms On a Two Post Lift

What is the difference between symmetric and asymmetric? Most of our customers ask that question. This video explains the difference between asymmetric arms and symmetric arms on an above ground lift.

Need help choosing the right Lifts?

Our team is here to help you find the perfect solution for your needs.

Capacity	10,000 LB.

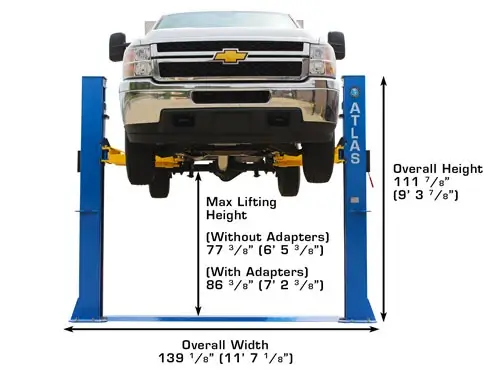

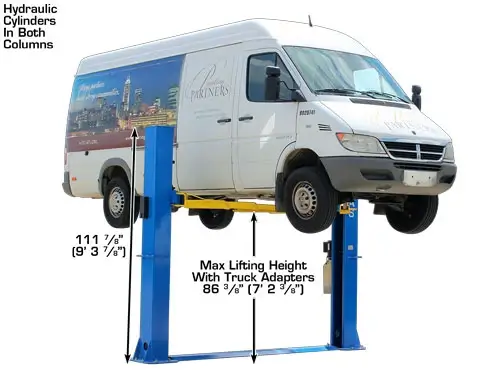

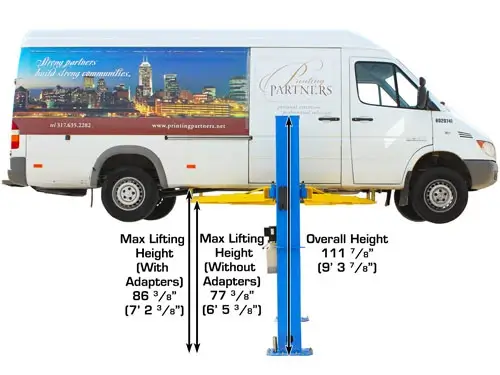

Overall Height	111 7/8″ (9’ 3 7/8″)
Overall Floor Width	139 1/8″ (11’ 7 1/8″)

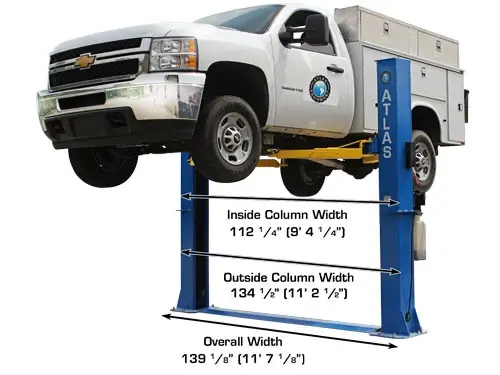

Outside Column to Outside Column	134 1/2″ (11’ 2 1/2″)
Maximum Lift Height (Without Adapters)	77 3/8″
Maximum Lift Height (With Adapters)	86 3/8″
Minimum Arm Height	4″
Inside Column	112 1/4” (9’ 4 1/4”)

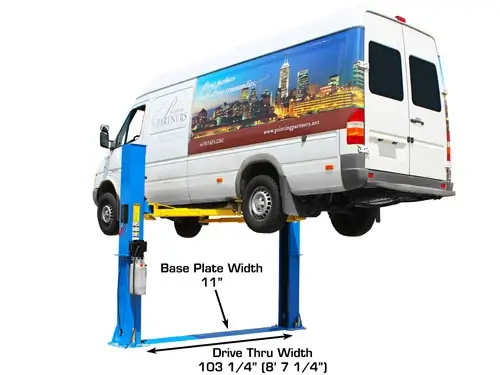

Drive Thru	101 1/4” (8’ 5 1/4”)

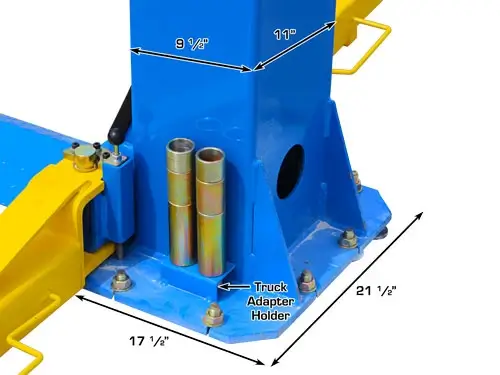

Column Size	9 1/2″ x 11″
Column Thickness of Steel	6mm
Base Of Lift	17 1/2″ x 21 1/2″
Motor/Electrical Requirement	220 volt single (1) phase. A 30 amp breaker is recommended
Oil Requirement	3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight	1,640 LBS.

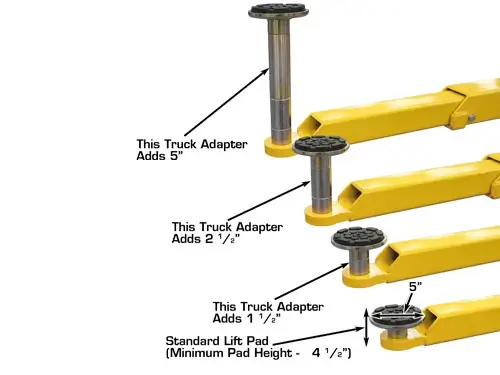

Adapter Heights	4 Each 2”, 3”, 6”
Arm Hole/Adapter Peg Size	1.5”
