SKU: ATEHT-CYCLELIFT

ATLAS Cycle Lift (1,000lbs Capacity)

Save $266.00

$1,950.00 ~~$2,216.00~~

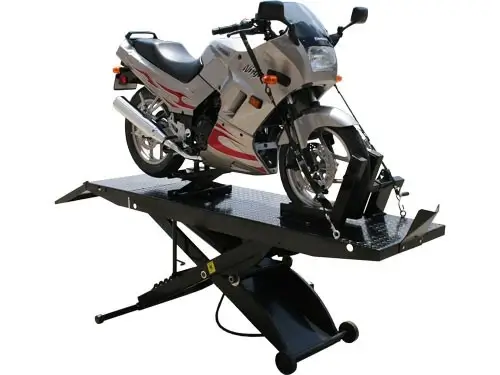

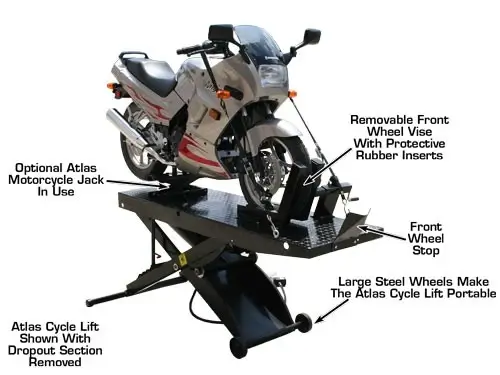

The Atlas Cycle Lift is one of the longest motorcycle lifts in the industry. It is an ideal addition to any professional dealership service department or home garage.

For maximum versatility, the lift can be customized with the Atlas Chopper Extension to extend the platform length to 106 inches, or the Atlas XLT Kit to increase width for ATV maintenance.

Request a quote

Features

1,000 lbs. Weight Capacity
93″ Table Length
Diamond Plate Surface
33″ Full Rise
500 lb. Shipping Weight

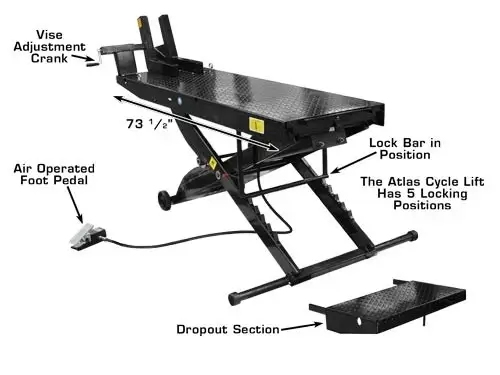

Foot Pedal Included
Air Operated
Shipping Dimensions: 85 1/2″ x 26″ x 13 1/4″

Specifications

Documents

Videos

Atlas Cycle Lift

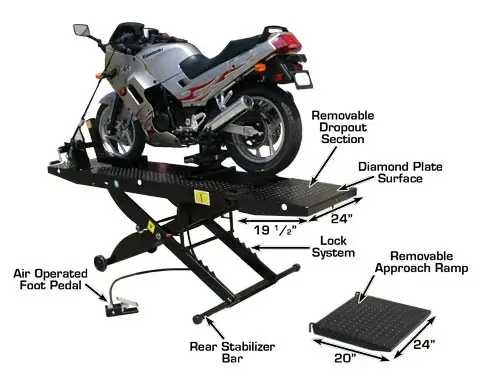

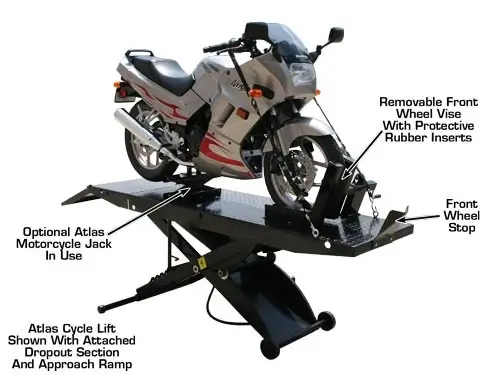

The Atlas Cycle Lift is one of the industry's longest motorcycle lifts. (Without the addition of a front or rear bolt on extension) The motorcycle lift has platform length of 93 inches. In addition to the heavy gauge diamond plated 93 inch platform, the Atlas Cycle Lift has an additional 20 inch removable approach ramp.

Need help choosing the right Lifts?

Our team is here to help you find the perfect solution for your needs.

Weight capacity	1,000 LBS.

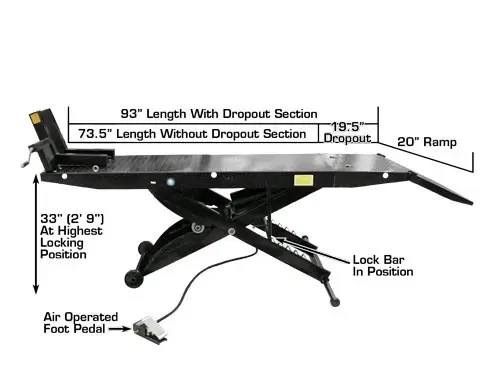

Total length with dropout section & ramp	113″ (9′ 5″)
Total length without ramp	93″ (7′ 9″)
Length without dropout section	73 1/2″ (6′ 1 1/2″)
Removable approach ramp	20″

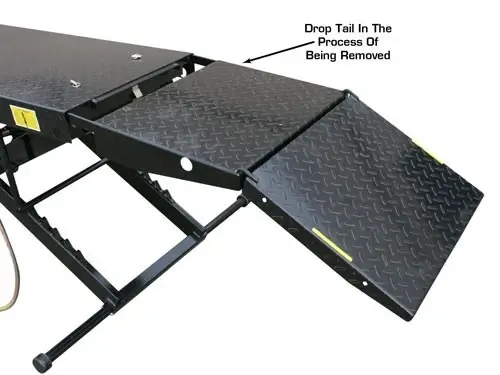

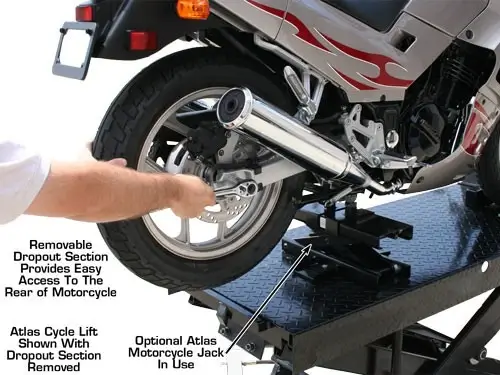

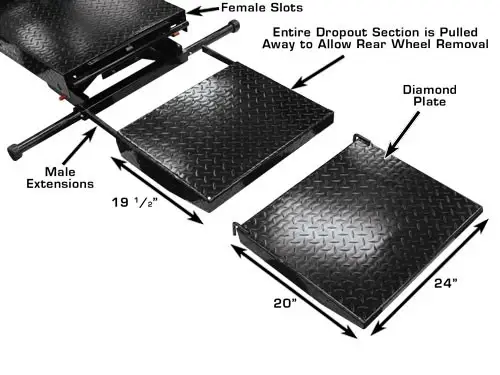

Length of dropout section	19 1/2″
Full rise	33″ (2′ 9″)

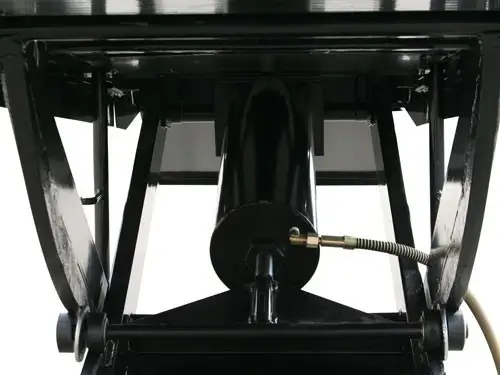

Cylinder	7″ (internal size = 6″)
Air requirements	90 – 100 PSI / 5 CFM Delivery
Width	24″ (2′)
Fully lowered	7 – 1/4″
Gauge of steel	10 Gauge (.1345″ / 3.42mm)
Shipping weight	500 LB.
