SKU: ATEATLMA

ATLAS Lawn Mower Adapter for 2 Post Lifts

Save $422.21
$3,096.20 $3,518.41

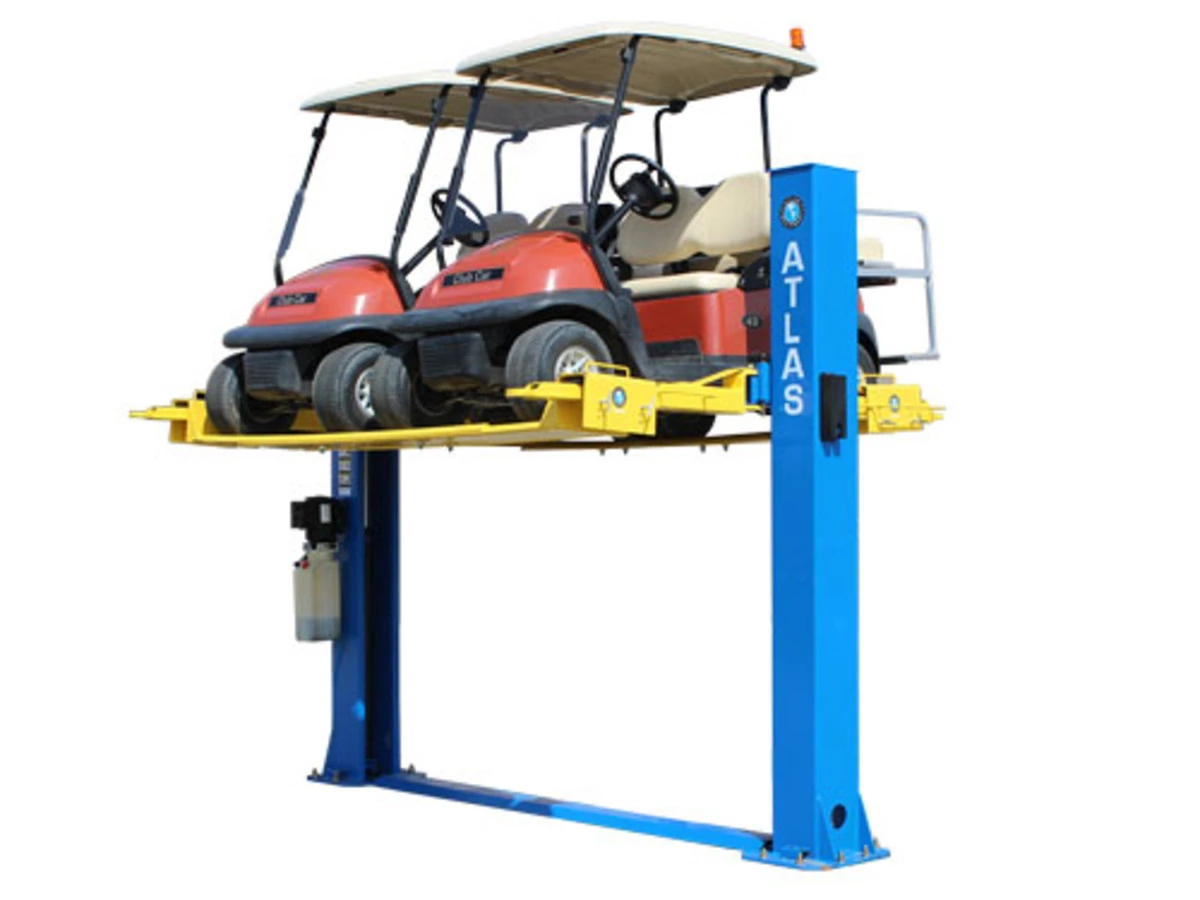

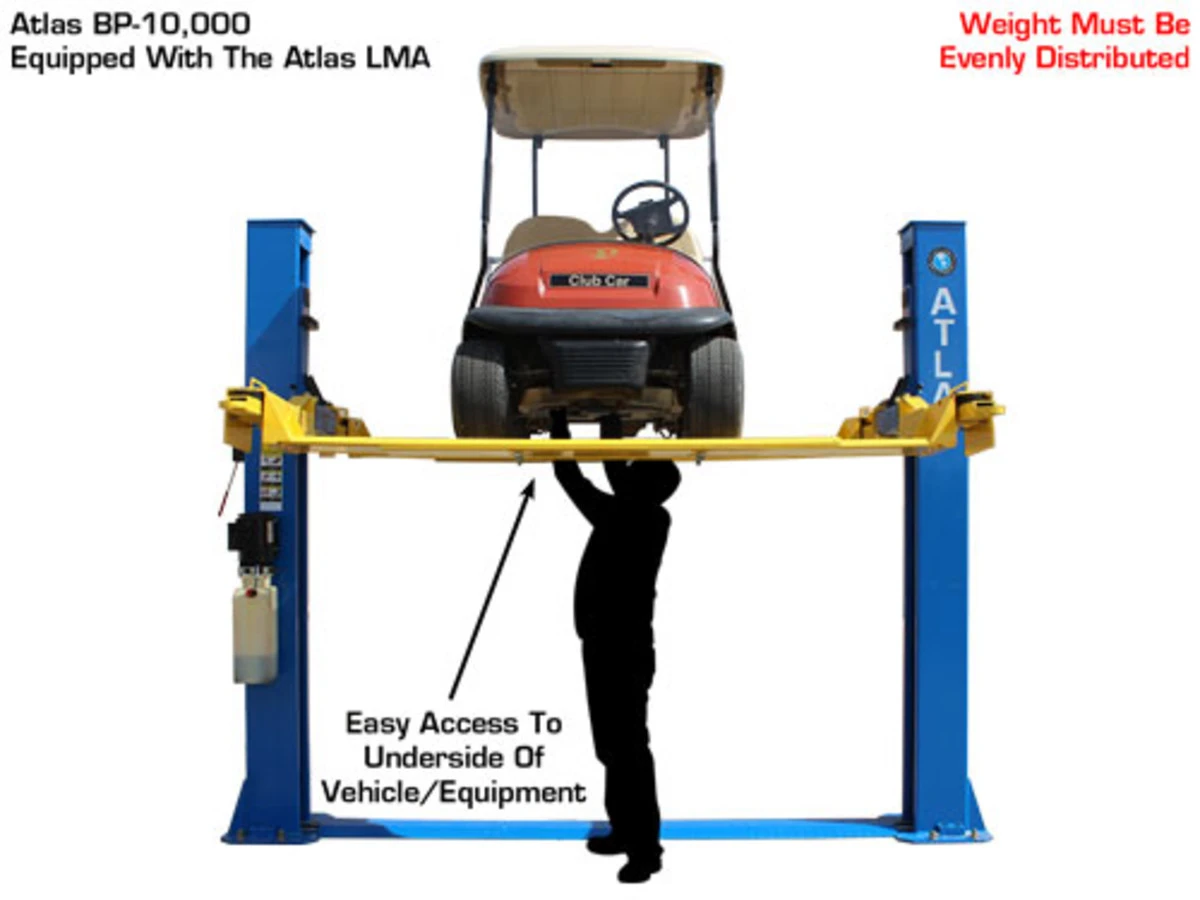

The Atlas Lawn Mower Adapter (LMA) transforms most two-post lifts with symmetric arms into a versatile platform for servicing lawn mowers, golf carts, ATVs, snowmobiles, and small sports cars. Featuring an adjustable width and an infinite wheelbase capacity between 32″ and 90″, the LMA provides a cost-effective four-wheel support system that eliminates the need for expensive specialty lifts.

When calculating safe lifting capacity, operators must account for the weight of the LMA (600 lbs) and arm extension geometry. Net lifting capacity decreases as the support plates move farther from the columns.

Quantity

Capacity Up To 5,000 lbs. *

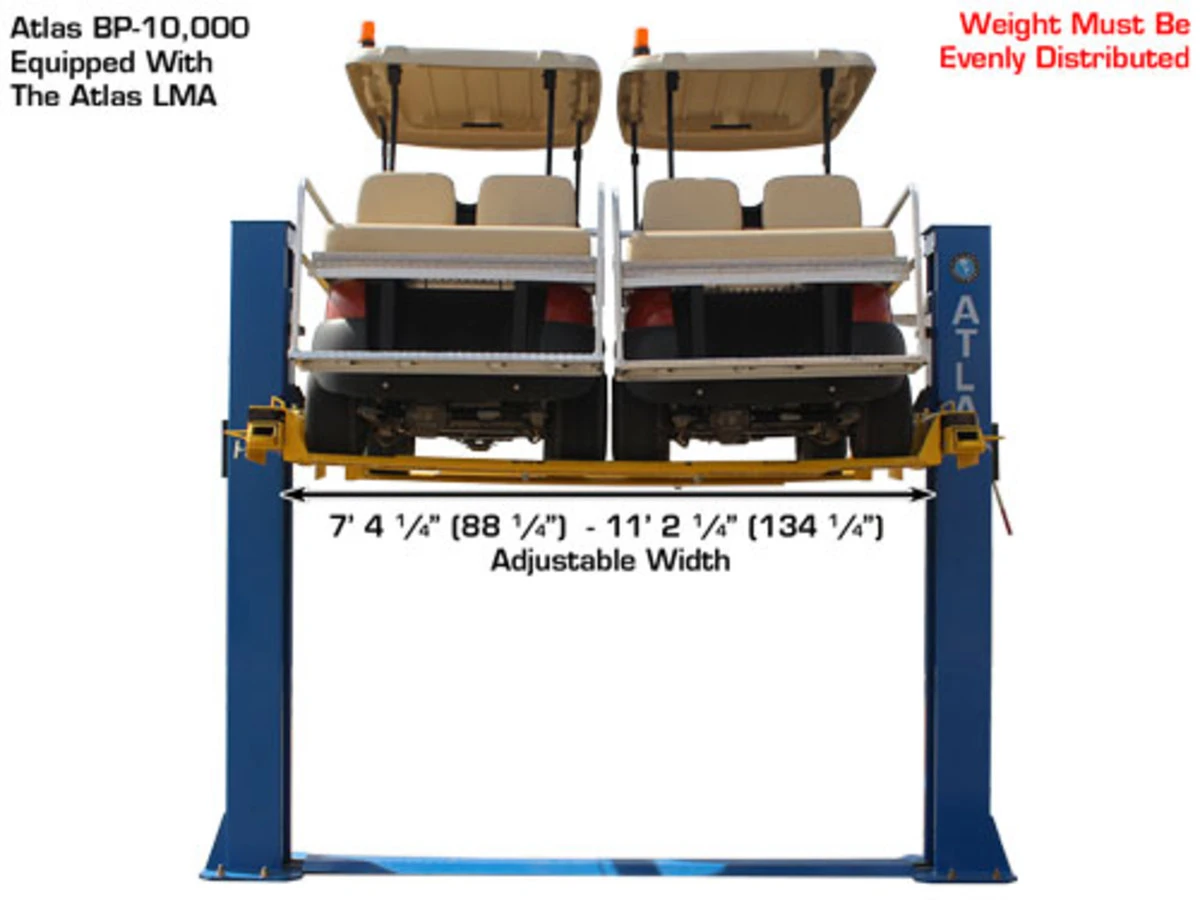

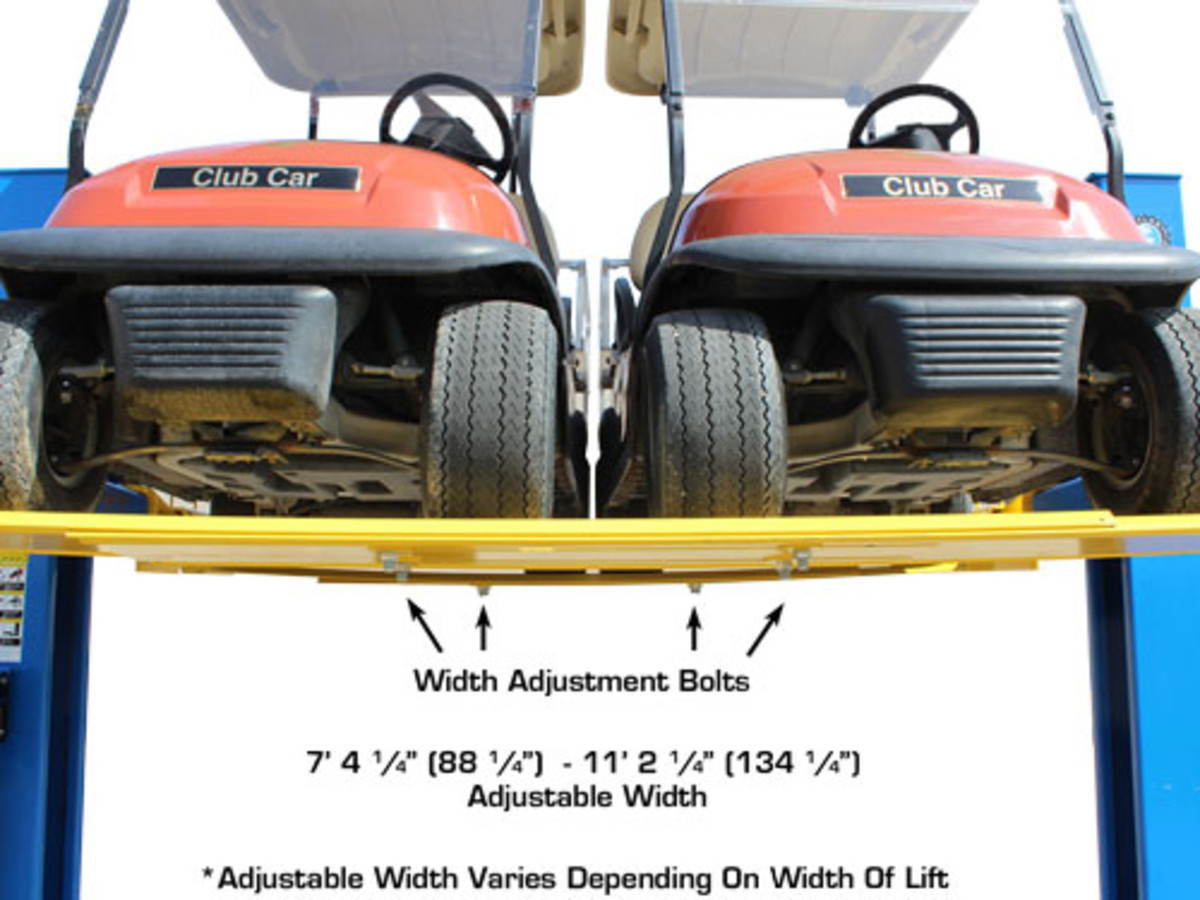

Adjusts In Width 8′ – 11′
Wheel Base 32″ – 90″ *

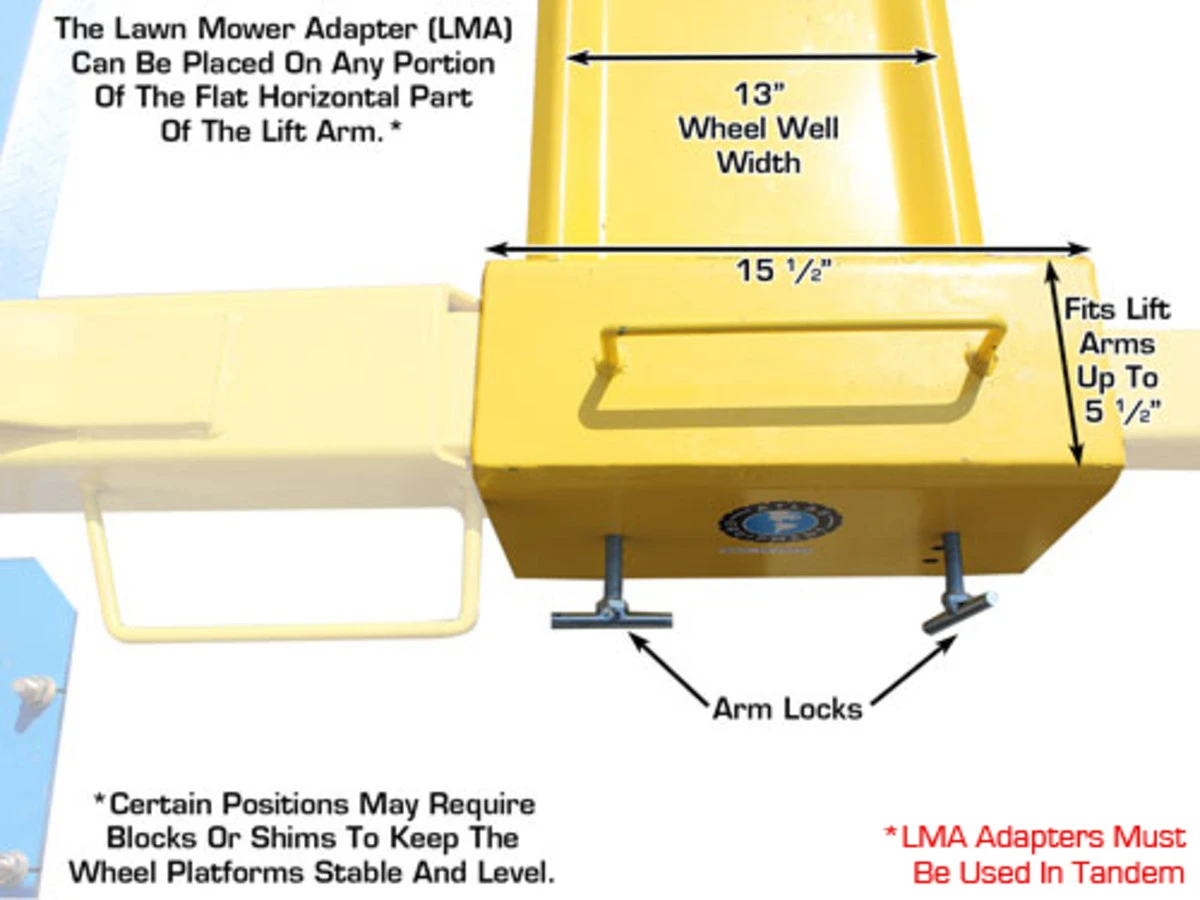

Wheel Well Width 12″
Thickness Of Steel 1/4″ (2 Gauge)

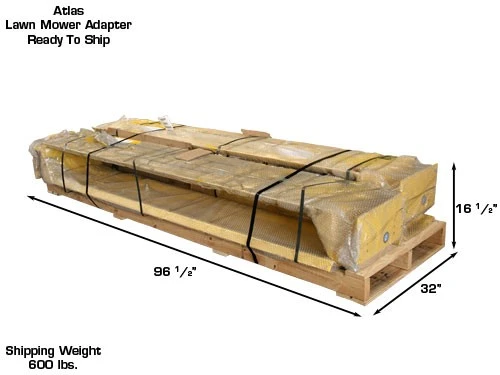

Shipping Weight 600 lbs.

*Will Fit Over Symmetric Lift Arms With Width Up To 5-1/2″

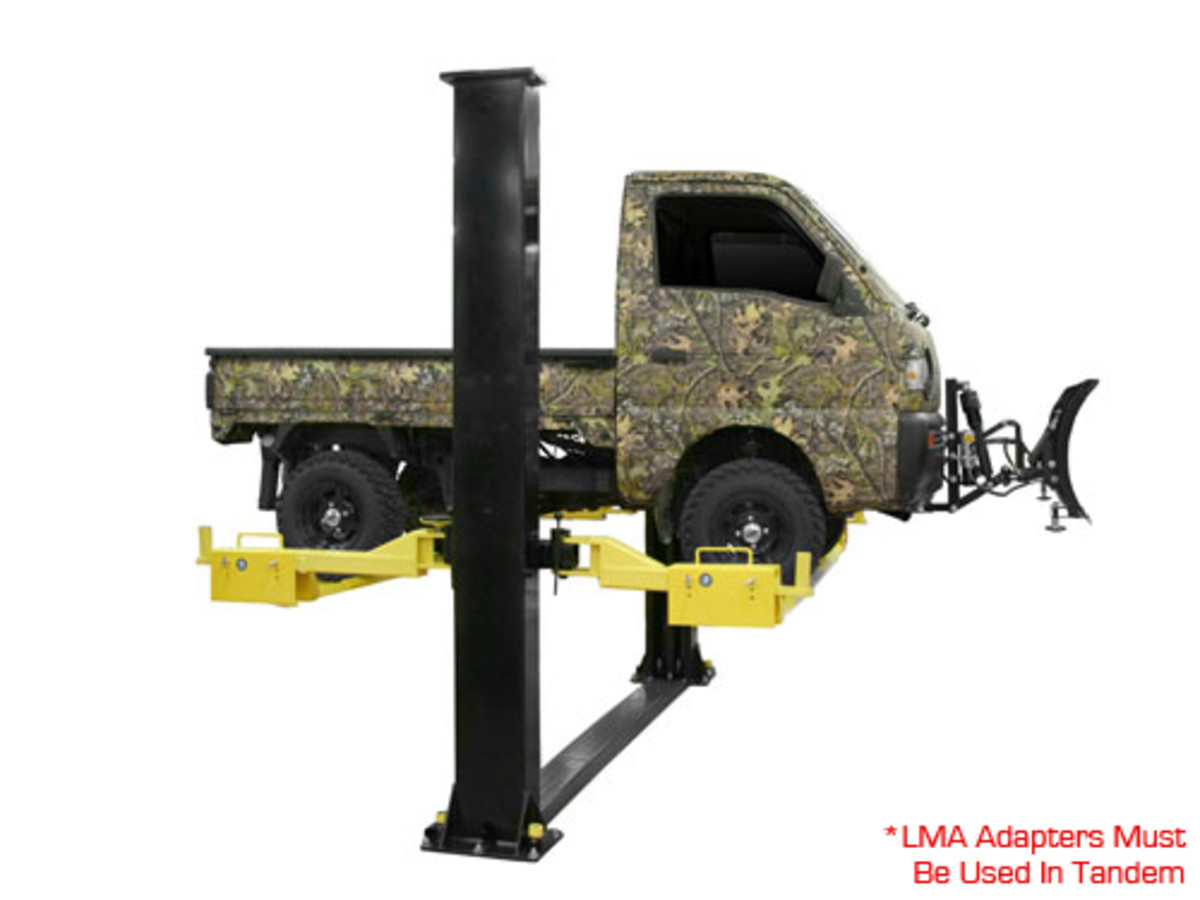

*LMA Consists Of Two Wheel Platforms. Direct lift HR800 Shown Is Not Included.

*MAY VARY DEPENDING ON LIFT AND WEIGHT DISTRIBUTION.
THE LONGER THE WHEEL BASE OF THE VEHICLE TO BE LIFTED;
THE LOWER THE LIFTING CAPACITY OF THE LMA.

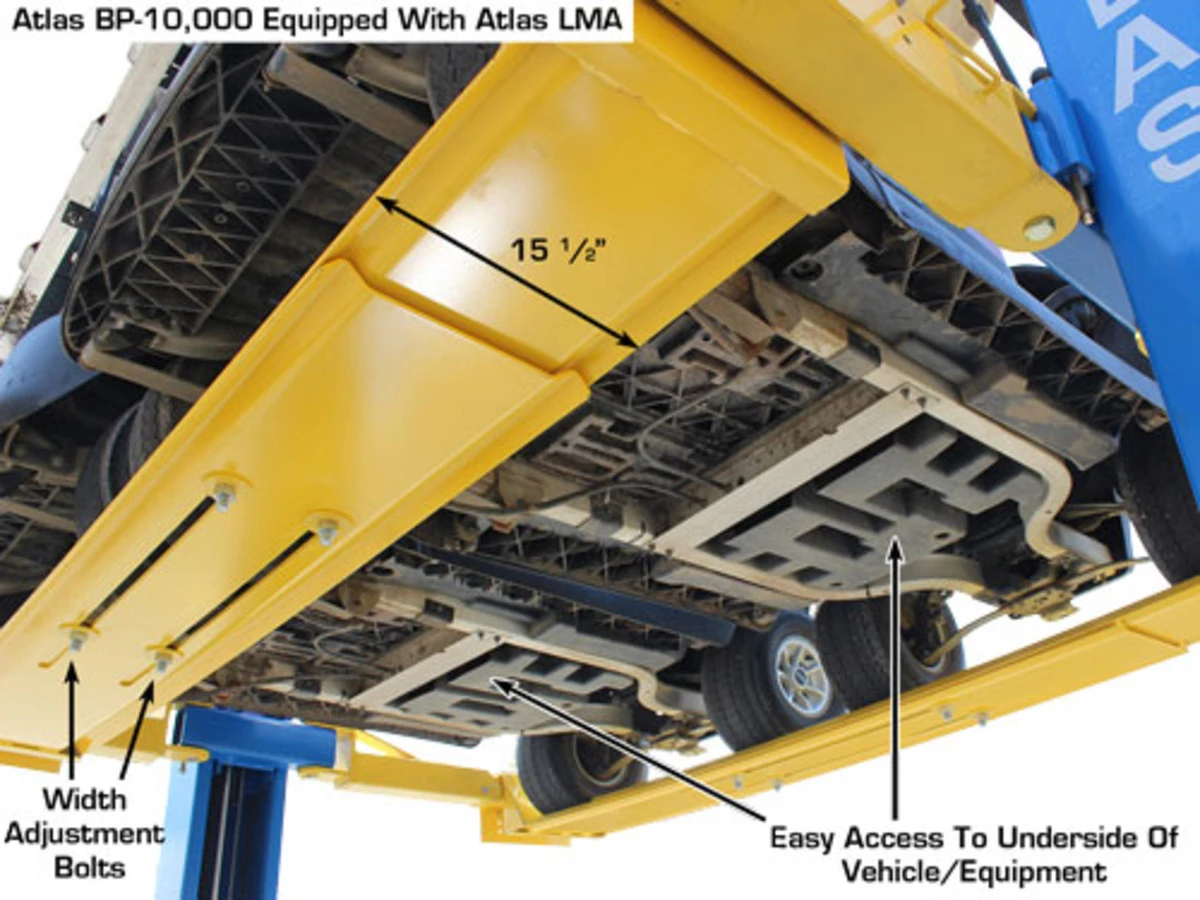

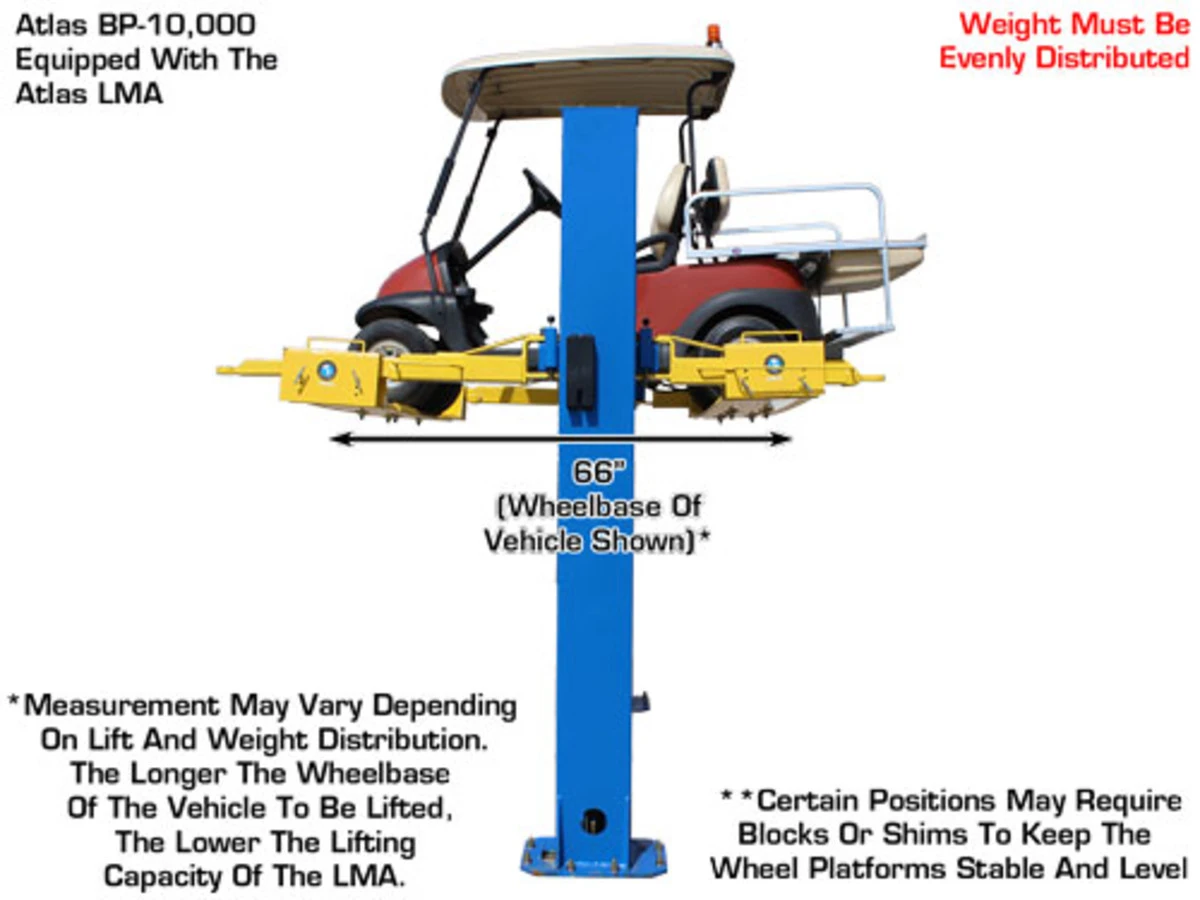

*LMA SHOWN ON DIRECT LIFT HR8000. MAY REQUIRE BLOCKS AND/OR SHIMS AT
DIFFERENT POSITIONS ON LIFT ARMS TO KEEP WHEEL PLATFORMS STABLE AND LEVEL.
