ATLAS ST-7000 SUPER TALL 4 Post Lift 7,000lbs Capacity

SKU: ATEXH-PRO7000ST

ATLAS ST-7000 SUPER TALL 4 Post Lift 7,000lbs Capacity

Save $1,518.00

$11,130.00 ~~$12,648.00~~

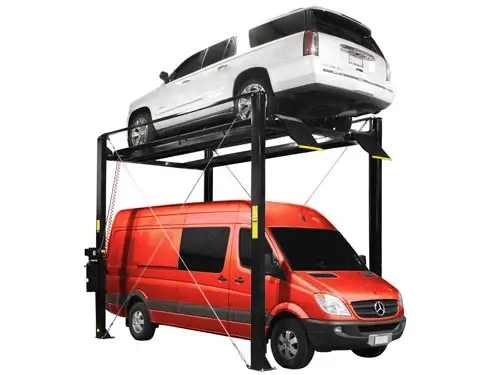

The Atlas ST-7000 is the ultimate 4-post lift for mechanics and car enthusiasts with high-ceiling garages. Capable of lifting up to 7,000 lbs., it offers an exceptional 144 inches (12 feet) of clearance under the runway perfect for storing tall vehicles underneath.

It features the same heavy-duty runways as the Atlas GP-9000, alongside an adjustable 21-position lock ladder to customize your storage heights during installation. Please note: This item is currently out of stock in Ontario.

Request a quote

Features

7,000 lb. Capacity
Lifts over 12 feet high!
Atlas Powder Coat Finish
Lock Ladder Design

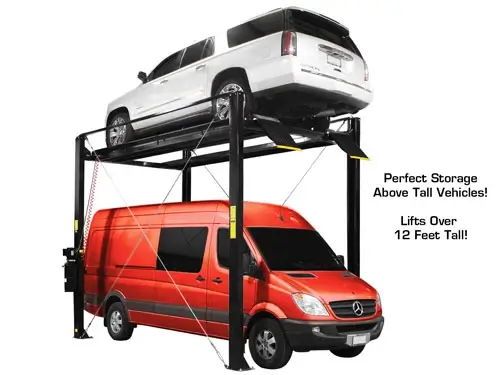

Perfect for storing above tall vehicles

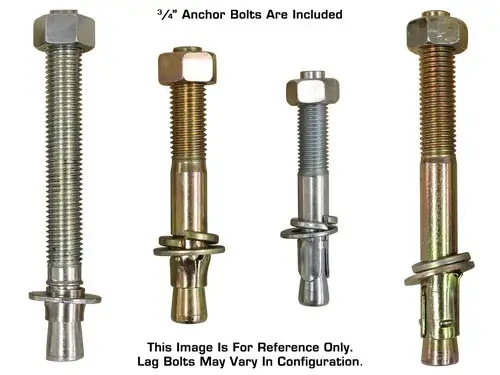

Anchor Bolts (Included)
Jack Trays (Not Included)
Approach Ramps (Included)
Must be bolted to ground

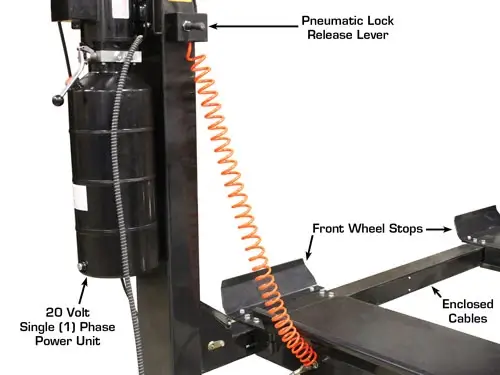

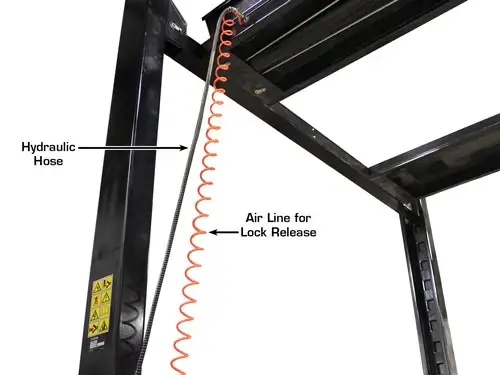

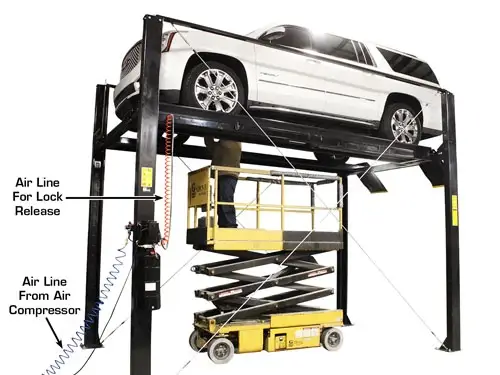

Single Point Pneumatic Lock Release
Reinforced runways

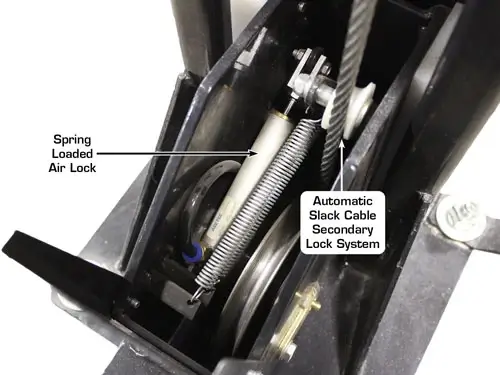

Emergency secondary locking system
Double Lock Safety System
2 Year Structural, 1 Year Hydraulic Warranty

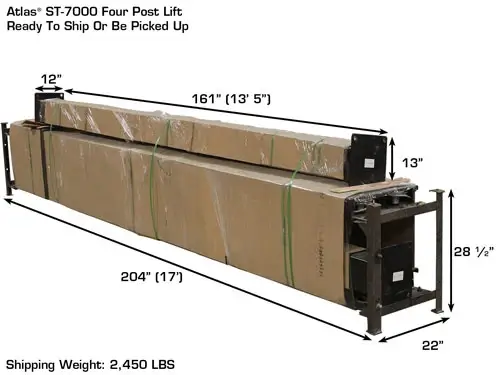

Shipping Weight: 2,450 lbs.

Specifications

Capacity	7,000 LB
Lifting Height To Top Of Runway	147″ (12′ 3″)

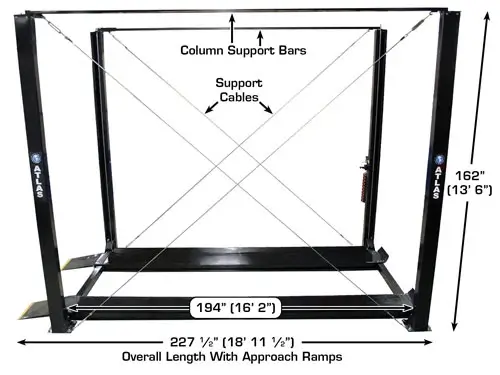

Overall Length with Approach Ramps	227 ½” (18′ 11 ½”)
Overall Length without Approach Ramps	205 ¼” (17′ 1 ¼”)
Length Between Columns	185″ (15′ 5″)
Overall Width (With Motor)	123″ (10′ 3″)
Overall Width (Without Motor)	110 ½” (9′ 2 ½”)

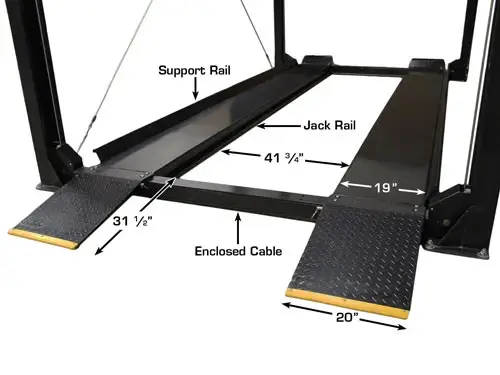

Approach Ramp Length	31 ½” (2′ 7 ½”)
Total Runway Width	19″
Runway Length	194″ (16′ 2″)
Runway Thickness	4 ½”
Width Between Runways	45″ (3′ 9)
Width Between Runway Rails	41 ¾” (3′ 5 ¾”)
Outside Runway to Outside Runway	83″ (6′ 11″)

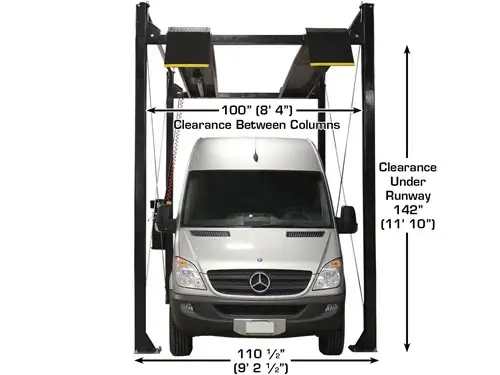

Clearance Under Runways	142″ (11′ 10″)
Size of Column	7 ½” x 4 ½”
Clearance Between Columns	100″ (8′ 4″)
Base of the Column	11 ¾” x 13″
Height of Columns	162″ (13′ 6″)
Maximum Wheel Base	182″ (15′ 2″)
Drive Thru (Outside of tire to outside of tire)	82 ½” (6′ 10 ½”) Adjustable by 7 ½”
Cable Diameter	.625″ (5/8″)
Gauge Of Steel	5 Gauge (.2″ / 1/5″ / 5mm)

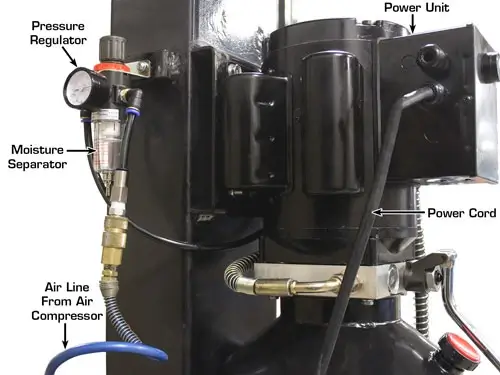

Motor	220V +/- 5% (209-231volts) 1 phase. A 30 amp breaker is required.
Oil Requirement	6 Gallons AW32/AW46
Shipping Weight	2,450 LBS.
Locking Positions Under Runway (+/ – 2″)
23″ (1′ 11″)
29″ (2′ 5″)
35″ (2′ 11″)
41″ (3′ 5″)
47″ (3′ 11″)
52 ½” (4′ 4 ½”)
58 ½” (4′ 10 ½”)
64 ½” (5′ 4 ½”)
70 ½” (5′ 10 ½”)
76 ½” (6′ 4 ½”)
82 ½” (6′ 10 ½”)
88 ½” (7′ 4 ½”)
94 ½” (7′ 10 ½”)
100 ½” (8′ 4 ½”)
106 ½” (8′ 10 ½”)
112 ½” (9′ 4 ½”)
118 ½” (9′ 10 ½”)
124 ½” (10′ 4 ½”)
130 ½” (10′ 10 ½”)
136 ½” (11′ 4 ½”)
142 ½” (11′ 10 ½”)
